GRANIT Mobile weighing system

Further information

Technical data:

The Weighlog 300 uses two robust load sensors to measure the pressure and back pressure required to lift the load. The weighing system is normally used in dynamic weighing mode, but can also be used in static weighing mode. In the case of dynamic weighing, the weight is determined during the normal lifting process. At the same time, the lifting speed is detected and compensated. Static weighing involves lifting and stopping the lifting process in a specific position.
Voltage supply: 11 to 30 V DC
Temperature range: -20 °C to +50 °C Working range
System accuracy: ± 1% of the maximum lifting capacity of the machine
Pressure sensor range: 0 to 250 bar
Warranty: 2 years
Protection classes: main unit IP67, full RFI / EMI protection

Version:

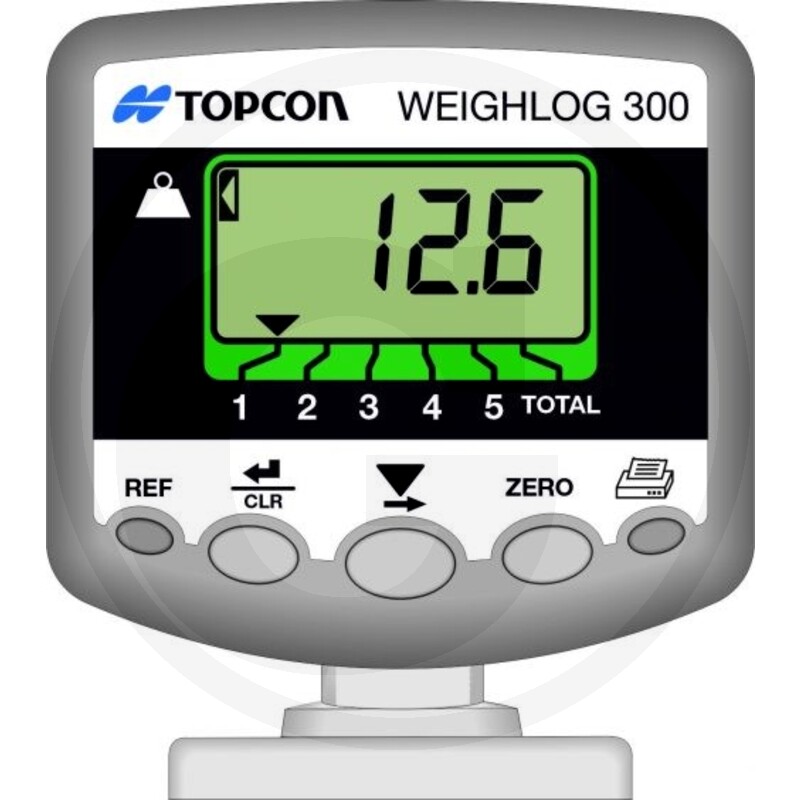

The Weighlog 300 is a mobile weighing system that weighs goods by measuring the hydraulic pressure during the loading process. The Weighlog 300 has two pressure sensors for simultaneous measurement on the pressure and counter-pressure side. During dynamic lifting (no stop in the weighing position), the Weighlog 300 takes the variable lifting speed into account. Dynamic and/or static weighing is possible depending on the machine type and application. Weighing is possible while travelling (slowly) on a smooth and level surface. The ICP 300 serial printer (11671780) can be connected for documentation purposes. The Weighlog 300 is suitable for front loaders, skid steer loaders and wheel loaders, among others.

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

4,65 kg

Fig. no.:

1
