GRANIT Scale kit

Further information

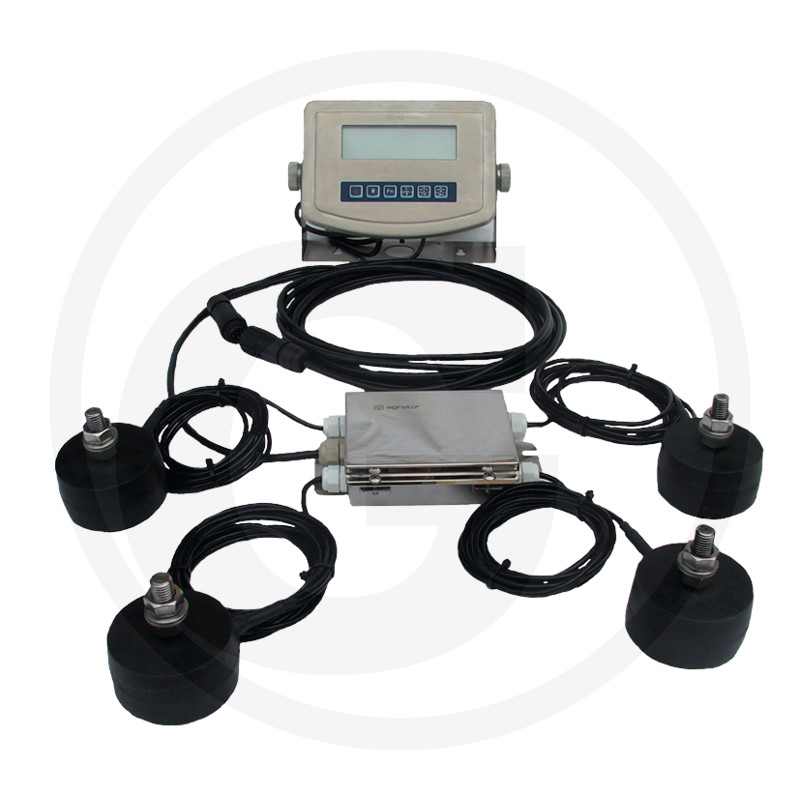

Included in delivery:

• 4 weighing feet
• 1 connection box
• 6 m weighing signal cable
• 1 waterproof screw plug for connection to the weighing display
• 1 weighing display HD1
• 1 manual

Technical data:

Weighing base:
• Internal load cell
• Stainless steel support disc
• Stainless steel mounting plate with fixing bolts
• Rubber sleeve as additional protection for the load cell
• M14 thread with nuts and washers for height-adjustable assembly of the feet
• Total height of the weighing base 98 mm
• Diameter of the weighing base 70 mm

Load cells:
• Encapsulated, welded compression load cell with load introduction
• Robust design made of nickel-plated tool steel
• Dustproof and waterproof in accordance with protection class IP68
• Nominal load per load cell 2000 kg
• Safe overload 150 %, breaking load 300 %
• Characteristic value 2 mV/V
• Operating temperature -35 to +70 °C

Connection box:
• Waterproof connection box
• Connection terminals for load cells and weighing signal cable
• Potentiometer for corner adjustment of the load cells
• Cable outlets with cable glands

Weighing signal cable:
• 4-pole cable 4 x 0.5 mm²
• Outer diameter 7.6 mm
• Specially sheathed
• UV-resistant
• Small bending radius
• Non-slip

Weighing indicator HD1:
• Display and mounting bracket made of stainless steel
• Dustproof and waterproof according to protection class IP67
• 6-digit LCD display with 25 mm digit height and backlight
• Resolution 1 kg
• Automatic zero setting selectable when switching on
• Manual zero setting
• Zero point stabilisation
• Totalisation
• Animal weighing mode with adjustable parameters
• Energy saving mode
• Power supply via built-in power supply
• Data output via RS232 interface for large display, PC or PLC
• Battery/rechargeable battery operation possible with 2 x 1.5 V AA
• Battery cover accessible from outside
• Dimensions including bracket (W x H x D) 258 x 178 x 58 mm

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

8,49 kg
