GRANIT Three-point scale

Further information

Included in delivery:

Scale, top link lugs, bolts and linch pins, user manual

Technical data:

Lower link spacing continuously adjustable between 85 and 90 cm
• The distance between the top link and the lower link can be continuously adjusted between 48 and 68 cm on the implement side
• Designed for implements similar to a fertiliser spreader up to a total weight of 4500 kg
• Resolution 5 kg
• Accuracy in the field +/- 1 to 2 percent
• Dimensions (horizontal) 104 x 84 x 20 cm (LxWxH)
• Unladen weight approx. 80 kg

12 V scale display technical data: easy-to-read E Ink display, Bluetooth interface*, easy and logical operation, aluminium + stainless steel housing, IP67 protection class, M12 connector for weighing equipment, power supply via 2 m cable with DC vehicle plug (12V) or 9V block battery, stainless steel bracket with 2 ball joints, easy calibration. *The free Agreto Spreader app is also available in the Google Play Store, which can be used to reliably display the application rate based on the distance travelled and the spreading width: https://play.google.com/store/apps/details?id=com.agreto.Spreader.

Version:

• Mobile scale for three-point tractor hydraulics

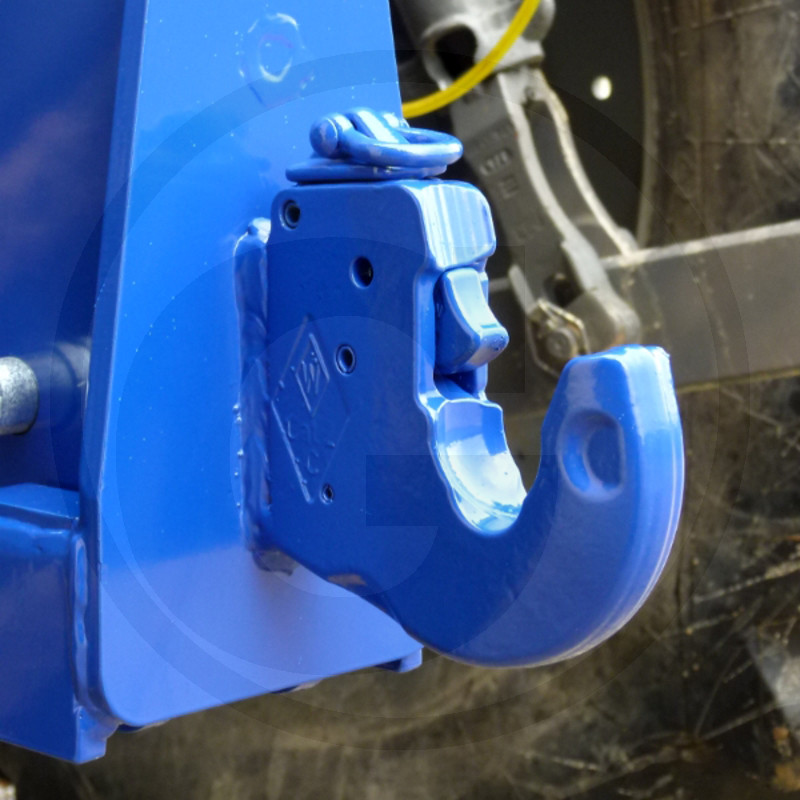

• Attachment between tractor (Cat. II and Cat. III) and implement (Cat. II)
• Roller-guided implement attachment with tail hook
• Ideal for weighing loads on fertiliser spreaders, transport crates, silage block cutters, feed mixers and other implements
• Can be adjusted in all directions, meaning that implements not corresponding to the CAT II standard can also be attached
• Transport and operational safety thanks to internal load cells
• Load weighed correctly in any position
• Centre of gravity shifted to the rear by approx. 20 cm
• High-quality powder coating
• Can be combined with various scale displays

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

98,00 kg

EAN codes:

4059139231966

Catalogue:

Front loader parts & implements (p. 32)
