Ilgenfritz External PTO shaft remote control

Further information

Version:

For John Deere tractors, for remotely controlling power take-off without previous activation

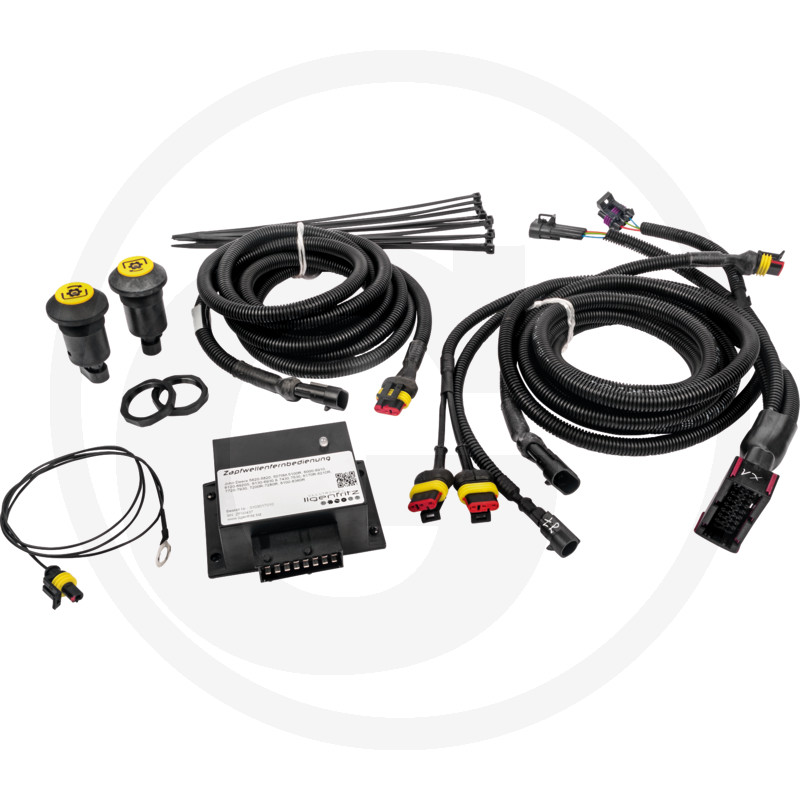

With electronic PTO shaft activation. Set of parts with 2 power take-off buttons and installation accessories

To fit:

John Deere 5620-5820, 5070M-5100M, 5080R-5100R, 6000-6910, 6120-6920S, 6130-6930 & 7430-7530, 6115M-6170M, 6090MC-6110MC, 6105R-6215R, 6090RC-6110RC tractors

Included in delivery:

Module, cable, accessories, manual

Technical data:

When using for the first time, external power take-off activation must be carried out via switch or the tractor’s internal control unit before it can be activated externally. This type of activation is laborious and time-consuming. The Ilgenfritz Electronics remote power take-off control allows you to comfortably activate and deactivate the rear power take-off using the external button. To activate, just press and hold the button for 5 seconds and the power take-off will initiate and the control LED on the button will light up. Press the button again to deactivate the power take-off. The internally activated power take-off can also be deactivated by pressing the button. The Ilgenfritz Electronics team value your safety, and have used high-quality, monitored buttons and a completely waterproof electronic system. Unlike their competitors who have not put as much work into power take-off activation safety, this electronic system detects all button states - even disconnected or short-circuited buttons. In addition, you can keep your original John Deere activation button in the cab rather than replacing it with an inexpensive replica.

Weight:

1,60 kg

Catalogue:

Electrics (p. 1302)

To be found in category:

ElectricsSwitches/controlsIlgenfritz control unit
