Ilgenfritz Hoist signal electronics assembly

Further information

Version:

For retrofitting the lifting unit signal to the 7-pin signal socket
Set of parts with installation accessories

To fit:

John Deere tractors

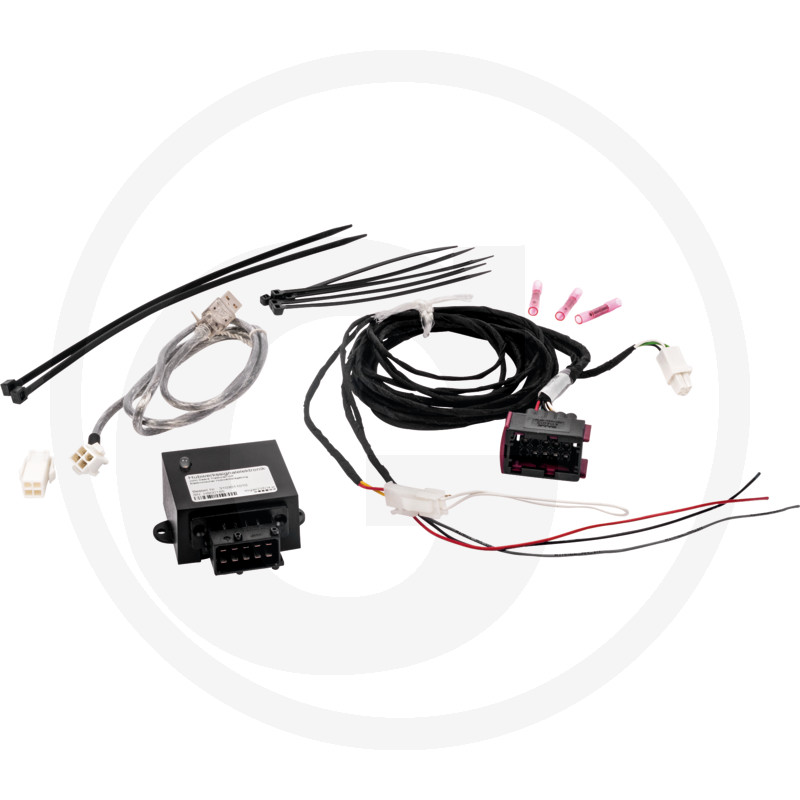

Included in delivery:

Module, cable, accessories, manual

Technical data:

The linkage signal electronics provides the linkage signal of the 7-pin signal socket without the installation of an additional sensor on the linkage.
The original angle sensor of the power lift is used to determine the lift height.
The angle at which the electronics switches the linkage signal is configurable and can thus be adapted to your needs.
The switched linkage signal has a level of 12V.
This signal is required, for example, for slug pellet spreaders, seed drills, seed spreaders, etc.

All advantages at a glance:
- Simple retrofitting of the lifting signal via the original lifting sensor (0.5 V sensor signal)
- The switching time can be set using the learning function or software
- The contact pin for the 7-pin signal socket is mounted on the cable harness
- Fast, cost-effective installation
- Illustrated installation instructions

Weight:

10 g

Catalogue:

Electrics (p. 1302)
