Ilgenfritz Hydraulic remote control CAN

Further information

Version:

For retrofitting, set of parts with installation accessories

To fit:

John Deere 6R (MY2015) round button

Included in delivery:

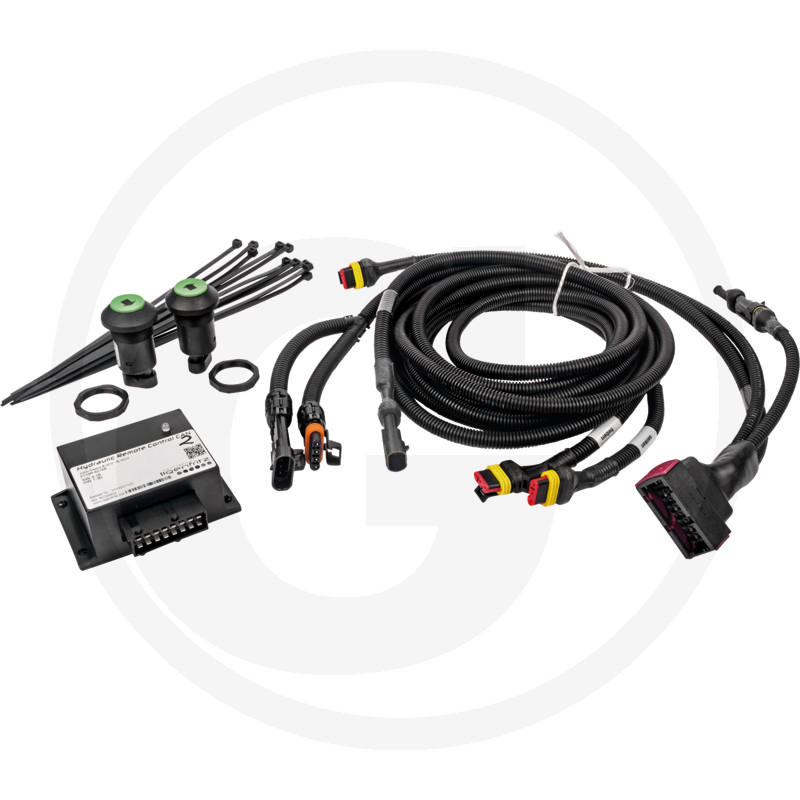

Module, cable, accessories, manual

Technical data:

Practical examples: • You wish to connect a machine to the three-point front hydraulics and must move the lower links to do so. • You wish to connect a machine to the front or rear hydraulics and must make the hydraulic top link longer or shorter to do so. • You wish to fill a slurry tanker with a hydraulically driven pump from the mudguard without having to climb onto the tractor again. What we do: We have developed an electronic system which allows external operation via two push buttons similar to that possible with the hydraulics remote control. This electronic system is technically different from the previous solution. The biggest advantage is that the system receives oil level information from the control unit via a learning function, and not via a potentiometer (as was the case previously). The driver of the machine can therefore find out the oil level at any time. In addition, the set oil level at the control unit is always given, regardless of how high the level in the cab is set in the DTI or BIF. The installation time is also substantially reduced as the system is installed with original plugs outside the cab directly at the control units. Installation of the electronic system takes approx. 0.5 - 1.0 hour.

Weight:

890 g

Catalogue:

Electrics (p. 1302)

To be found in category:

ElectricsSwitches/controlsIlgenfritz control unit
