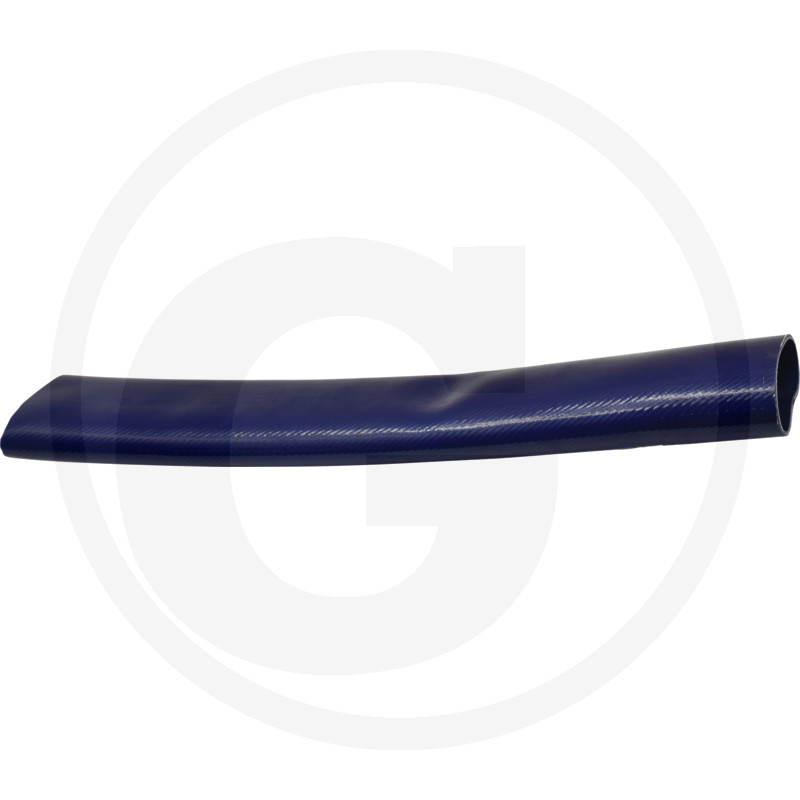

GOLLMER & HUMMEL Hose
Hilcoflex PU Drag extra
Part no.: 40504053765
Further information
- Inner Ø (mm):
- 114
- Inner Ø (inches):
- 4 1/2"
- Working pressure (bar):
- 14
- Burst pressure (bar):
- 42
- Length (m):
- Meterware
- Operating pressure max. (bar):
- 17
- Wall thickness (mm):
- 4,5
- Temperature range (°C):
- -50 °C - +75 °C
- Version:
- Tensile strength 13800 kg
- Hose type:
- Flat hose
- Food safe:
- No
- Roll length (m):
- 100
- Weight (kg/m):
- 1.9
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Fig. no.:
- 2
TPU hoses for slurry hose systems
Hilcoflex PU Drag and Hilcoflex PU Drag Extra
Application:
• Transport hose between lagoon and field
• Drag hose directly behind the tractor
Advantages:
• Outstanding abrasion resistance
• Very robust, wear-resistant and durable
• Extremely high tensile strength
• Resistant to oil, petrol and chemicals
• Resistant to ageing and ozone
• Light and easy to handle in comparison with rubber delivery hoses
• Very good flexibility at low temperatures
Properties:
Fabric inlay:
• High-tensile polyester yarn, circular woven
• Special design for high tensile strength, tight bending radii and low elongation under pressure
• Completely embedded in polyurethane, therefore optimum protection against mechanical damage
Inner and outer layer:
• Thermoplastic polyether polyurethane, pressed through the textile inlay in a special single-stage extrusion process
• Highly abrasion-resistant with a 5-6 times longer service life than nitrile hoses
• Interior: very smooth for minimal pressure loss
• Exterior: very smooth for good flexibility, thick-walled for unrivalled wear resistance
Tear resistance: The maximum tensile load during continuous operation should not exceed 1/3 of the tensile strength.
Temperature range: -50 °C to +75 °C (water)
Sold by the metre!
Hilcoflex PU Drag and Hilcoflex PU Drag Extra
Application:
• Transport hose between lagoon and field
• Drag hose directly behind the tractor
Advantages:
• Outstanding abrasion resistance
• Very robust, wear-resistant and durable
• Extremely high tensile strength
• Resistant to oil, petrol and chemicals
• Resistant to ageing and ozone
• Light and easy to handle in comparison with rubber delivery hoses
• Very good flexibility at low temperatures
Properties:
Fabric inlay:
• High-tensile polyester yarn, circular woven
• Special design for high tensile strength, tight bending radii and low elongation under pressure
• Completely embedded in polyurethane, therefore optimum protection against mechanical damage
Inner and outer layer:
• Thermoplastic polyether polyurethane, pressed through the textile inlay in a special single-stage extrusion process
• Highly abrasion-resistant with a 5-6 times longer service life than nitrile hoses
• Interior: very smooth for minimal pressure loss
• Exterior: very smooth for good flexibility, thick-walled for unrivalled wear resistance
Tear resistance: The maximum tensile load during continuous operation should not exceed 1/3 of the tensile strength.
Temperature range: -50 °C to +75 °C (water)
Sold by the metre!
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
