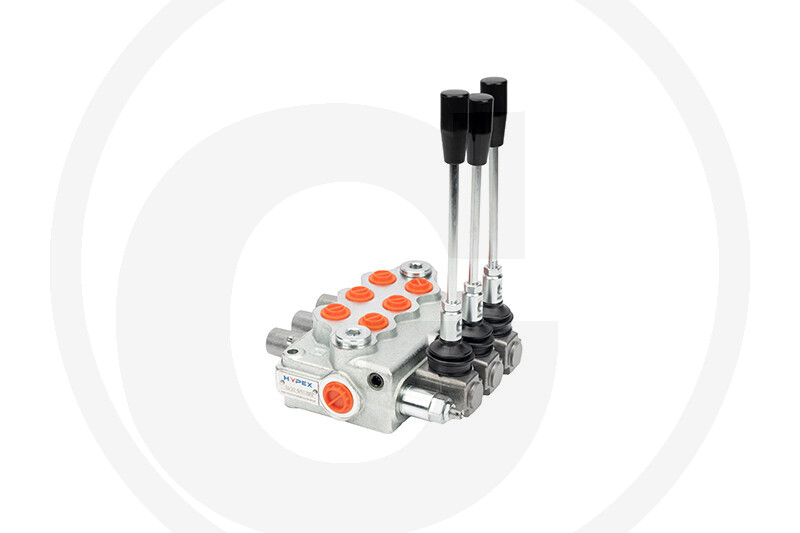

HYPEX Valve P45 3x double-acting (A-B closed)

Further information

Operating pressure max. (bar):

315

Width (mm):

174

E (mm):

174,5

Included in delivery:

• 1 x Monoblockventil
• 3 x Handhebel

PN (bar):

315

Depth (mm):

185

Control piston function:

3x double-acting

Nominal flow rate (l/min.):

45

Lever:

3

Adjustment range (bar):

160 - 315

F (mm):

147

Version:

4/3-way, 3x double-acting (A-B closed / spring return)

Housing material:

Cast steel, galvanised

Connection T (BSP):

G 1/2"

Additional information:

• max. Betriebsdruck P, A, B: 315 bar
• max. Betriebsdruck T: 25 bar
• Verunreinigungsstufe 10 nach NAS1638, X/19/16 nach ISO 4406
• interne Leckage (A,B ->T): ca. 3 cm³ /min bei 100 bar
• Ölviskosität im Betrieb: 15 – 75 mm²/s (cSt)

Connection P (BSP):

G 1/2"

Connection A-B (BSP):

G 3/8"

Operating temperature (°C):

-20 bis +100

Weight:

6,83 kg

EAN codes:

4059139493111
