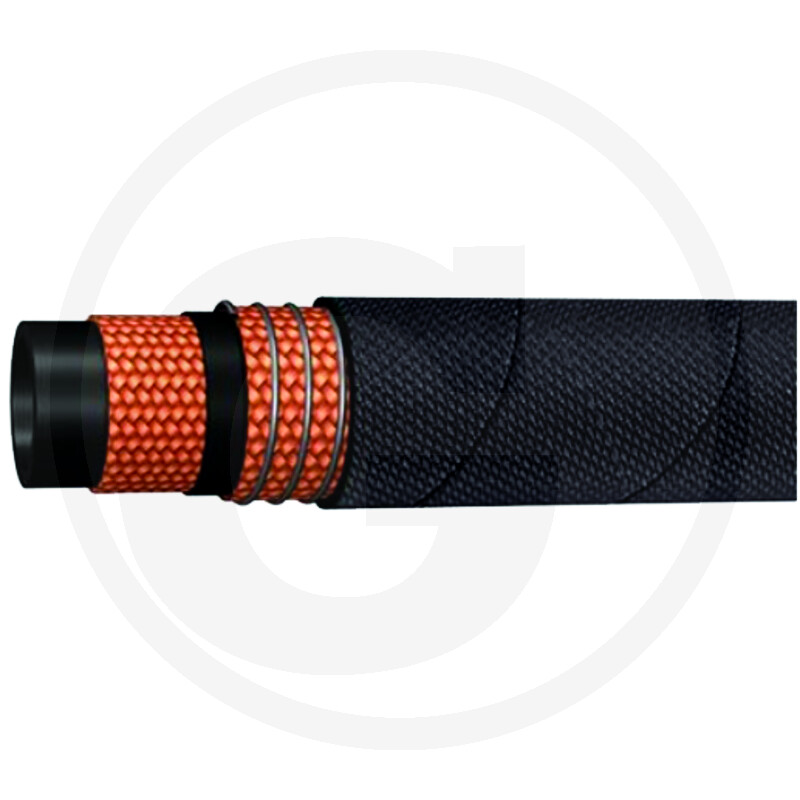

Polyhose Suction hose SAE 100 R4 DN89
Länge: 2000 mm
Part no.: 87001330
Further information
- Nominal width:
- DN 89 - 3 1/2"
- Outer Ø (mm):
- 103
- Operating pressure max. (bar):
- 5
- Burst pressure (bar):
- 20
- Weight (g/m):
- 3500
- Bending radius (mm):
- 260
- Press fitting (non-skive):
- -
- Length (mm):
- 2000
- Weight:
- 3,46 kg
- EAN codes:
- 4059139588190
- Catalogue:
- Hydraulics & pneumatics (p. 15)
When used as intended, rubber, thermoplastic and PTFE hoses are generally suitable for use with organic oils according to VDMA 24568 or ISO 15380, oils based on synthetic esters (HEES), on rapeseed oil (HETG) and on polyglycol (HEPG). However, additives and various operating conditions can limit this stability.
The operator is also responsible for periodical oil management to ensure proper operation of the hydraulics. If quality assurance maintenance is not carried out, wear or even failure can occur, for example due to cavitation or abrasion in the hose connection.
The operator is also responsible for periodical oil management to ensure proper operation of the hydraulics. If quality assurance maintenance is not carried out, wear or even failure can occur, for example due to cavitation or abrasion in the hose connection.
• Interior: oil-resistant synthetic rubber
• Reinforcement: one high-tensile fibre braid, one spring steel spiral
• Cover: ozone-resistant synthetic rubber
• Standard: SAE 100 R4 (except DN44)
• Main area of application: suction hoses
• Temperature range: -40°C - +100°C
• Recommended media: mineral-based hydraulic oil
• Reinforcement: one high-tensile fibre braid, one spring steel spiral
• Cover: ozone-resistant synthetic rubber
• Standard: SAE 100 R4 (except DN44)
• Main area of application: suction hoses
• Temperature range: -40°C - +100°C
• Recommended media: mineral-based hydraulic oil
