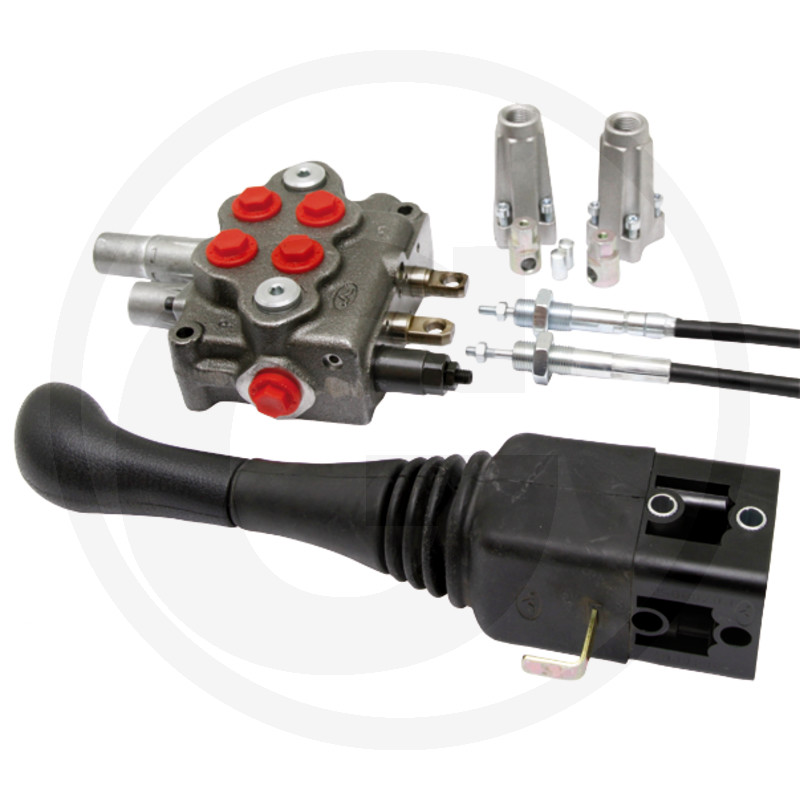

Walvoil Valve SD5 38-5PY13-AE - 1500 complete
Part no.: 86500504
Further information
- Bowden cable:
- 1500 mm
- Control piston function:
- 1x double-acting, 1x single-acting
- Nominal flow rate (l/min.):
- 40
- PN (bar):
- 315
- System:
- OC (Open Centre)
- Version:
- Open system, with pressure continuation
- Connection T (BSP):
- G 3/8"
- Connection P (BSP):
- G 3/8"
- Connection A-B (BSP):
- G 3/8"
- Weight:
- 5,11 kg
- Catalogue:
- Q4 Special 2025 (p. 823)
- To be found in category:
- Q4 Special 2025HydraulicsControl units - WalvoilSD5 2P in set1x double-acting, 1x single-acting
With this new control valve, you will be able to control all front loader functions remotely.
The lever can be mounted within easy reach to the right of the steering wheel, and acts on the control valve via two cables guided into the cab. This control valve can be mounted on the right-hand front loader console. It also functions as a separation point for the hydraulic supply to the loader.
Whether you raise or lower the loader, tilt or dump the device, this can now all be done without changing your grip. This 5-function valve with monoblock design boasts excellent internal tightness at high flow rates.
SUPPLIED INCLUDING FITTING FOR PRESSURE CONTINUATION.
