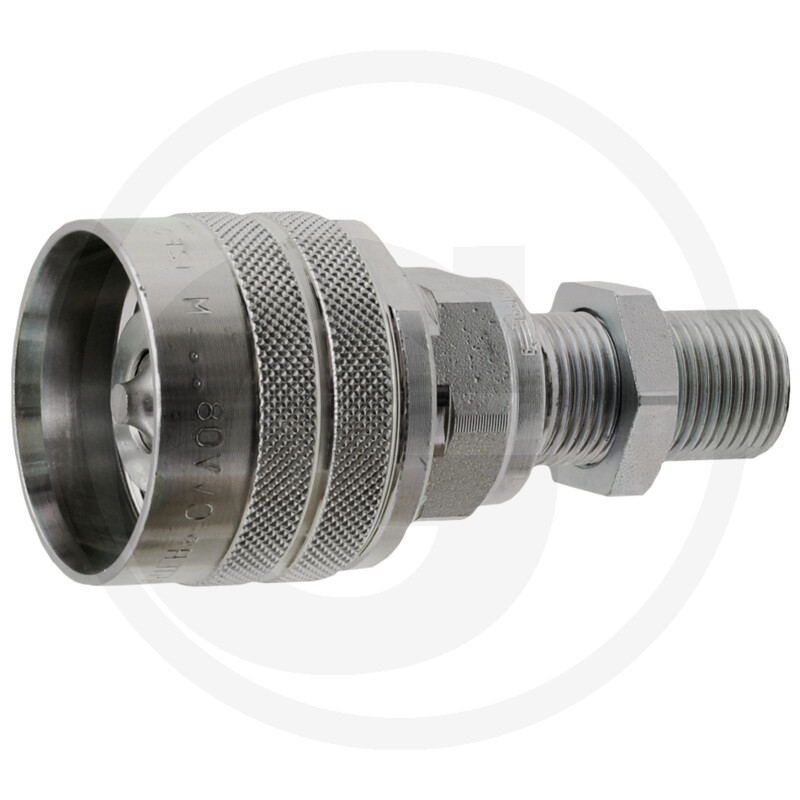

Faster CVV125/2215 M V
Threaded coupling FASTER
Part no.: 86004578
Further information
- Nominal width:
- DN 20
- Size:
- 4
- Connection thread A:
- 15L, M22x1.5 for bulkhead
- Nominal flow rate (l/min.):
- 100
- PN (bar):
- 270
- C (mm):
- 117
- D (mm):
- 48
- SW:
- 38
- Bulkhead width (mm):
- 26
- Weight:
- 10 g
- Catalogue:
- Hydraulics & pneumatics (p. 424)
Threaded couplings are designed for high-pressure or high-impulse applications.
The self-locking thread prevents unwanted loosening caused by vibrations.
• Cylindrical metric female thread, form A
• General application for industry, construction machinery, agricultural technology
• Carbon steel, chrome(VI)-free coating
• Coupling under (residual) pressure of up to 50 bar is possible on both sides
• The coupling must always be screwed down to the stop
The self-locking thread prevents unwanted loosening caused by vibrations.
• Cylindrical metric female thread, form A
• General application for industry, construction machinery, agricultural technology
• Carbon steel, chrome(VI)-free coating
• Coupling under (residual) pressure of up to 50 bar is possible on both sides
• The coupling must always be screwed down to the stop
