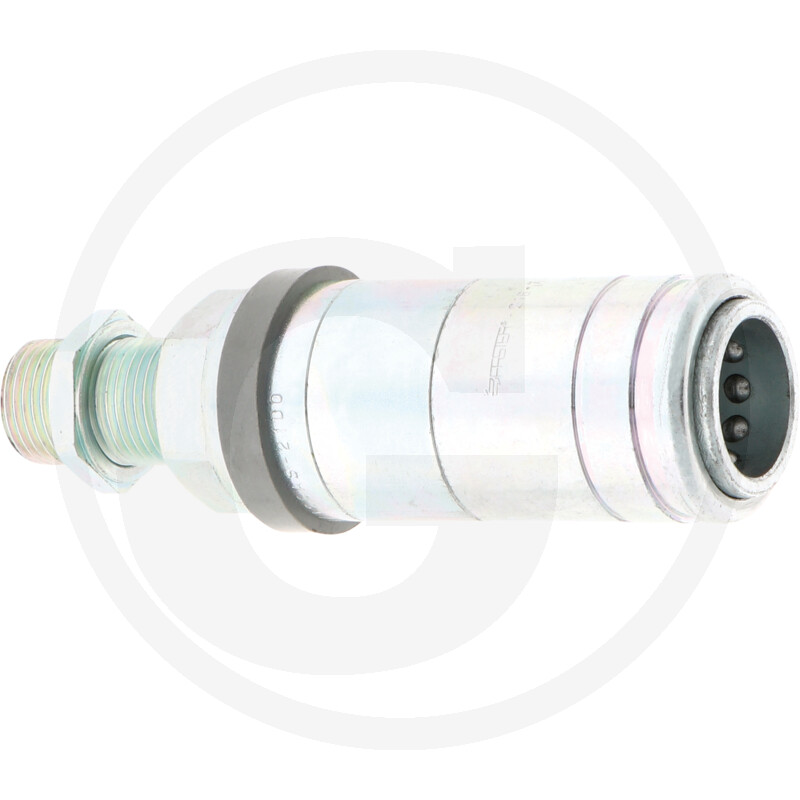

Faster 4RSHF sleeve 1/2" male BSP bulkhead
Part no.: 86004462
Further information
- Thread type:
- Male thread, bulkhead BSP
- Nominal width:
- DN 12
- Size:
- 3
- Connection thread A:
- 1/2" BSP for bulkhead
- Nominal flow rate (l/min.):
- 70
- Volume flow max. (l/min):
- 250
- Operating pressure max. (bar):
- 250
- L1 (mm):
- 130.2
- Ø D1 (mm):
- 42
- AF (mm):
- 32
- Connection thread:
- 1/2” thread (BSP)
- Series:
- 4SRHF
- Material:
- Steel, galvanised, MATE 500 (CrIII)
- Connection under pressure:
- Plug and sleeve under residual pressure
- Standard:
- ISO 7241-1-A
- Version:
- Plug-in coupling sleeve
- Function:
- Breakaway function, push-pull function
- Additional information:
- High Flow up to 250 l/min.
- Weight:
- 578 g
- Catalogue:
- Hydraulics & pneumatics (p. 449)
Use in agricultural engineering.
Standard: compatible with ISO 7241-1 part A
Material: steel, chrome(VI)-free coating.
Operating temperature: -25°C to +100°C
Push-pull connection and disconnection system. Plug can be connected under residual pressure (plug and sleeve), disconnection under residual pressure possible (breakaway function).
High flow version, for up to 250 l/min.
Standard: compatible with ISO 7241-1 part A
Material: steel, chrome(VI)-free coating.
Operating temperature: -25°C to +100°C
Push-pull connection and disconnection system. Plug can be connected under residual pressure (plug and sleeve), disconnection under residual pressure possible (breakaway function).
High flow version, for up to 250 l/min.
