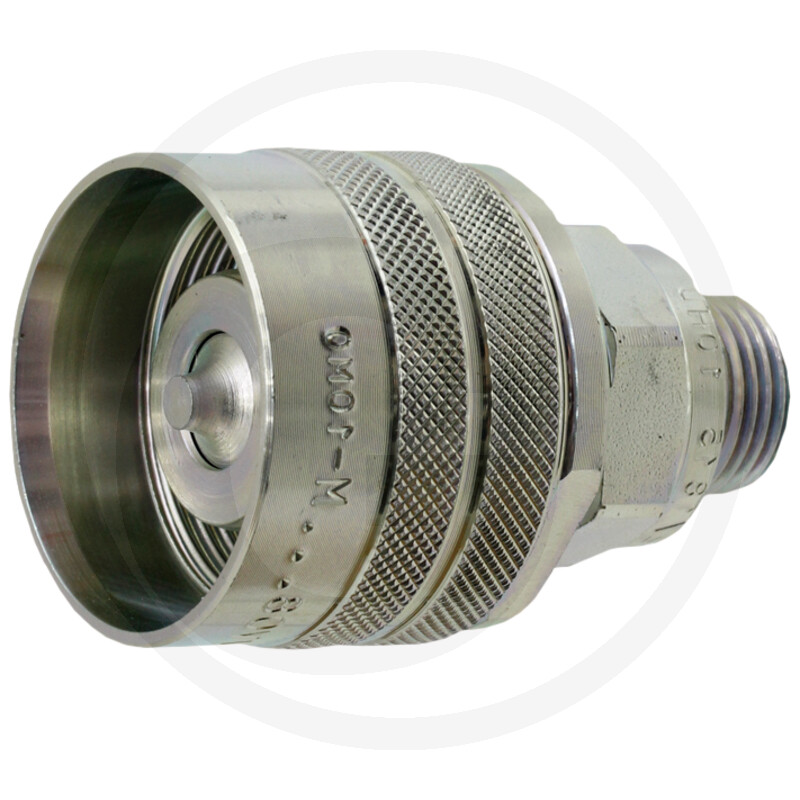

Faster CVV243/522 M V
Part no.: 86003415
Further information
- Nominal width:
- DN 38
- Size:
- 8
- Connection thread A:
- 38S, M52 x 2
- Nominal flow rate (l/min.):
- 450
- PN (bar):
- 350
- C (mm):
- 127
- D (mm):
- 80
- SW:
- 55
- Catalogue:
- Hydraulics & pneumatics (p. 424)
Threaded couplings are designed for high-pressure or high-impulse applications.
The self-locking thread prevents unwanted loosening caused by vibrations.
• Cylindrical metric female thread, form A
• General application for industry, construction machinery, agricultural technology
• Carbon steel, chrome(VI)-free coating
• Coupling under (residual) pressure of up to 50 bar is possible on both sides
• The coupling must always be screwed down to the stop
The self-locking thread prevents unwanted loosening caused by vibrations.
• Cylindrical metric female thread, form A
• General application for industry, construction machinery, agricultural technology
• Carbon steel, chrome(VI)-free coating
• Coupling under (residual) pressure of up to 50 bar is possible on both sides
• The coupling must always be screwed down to the stop
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
