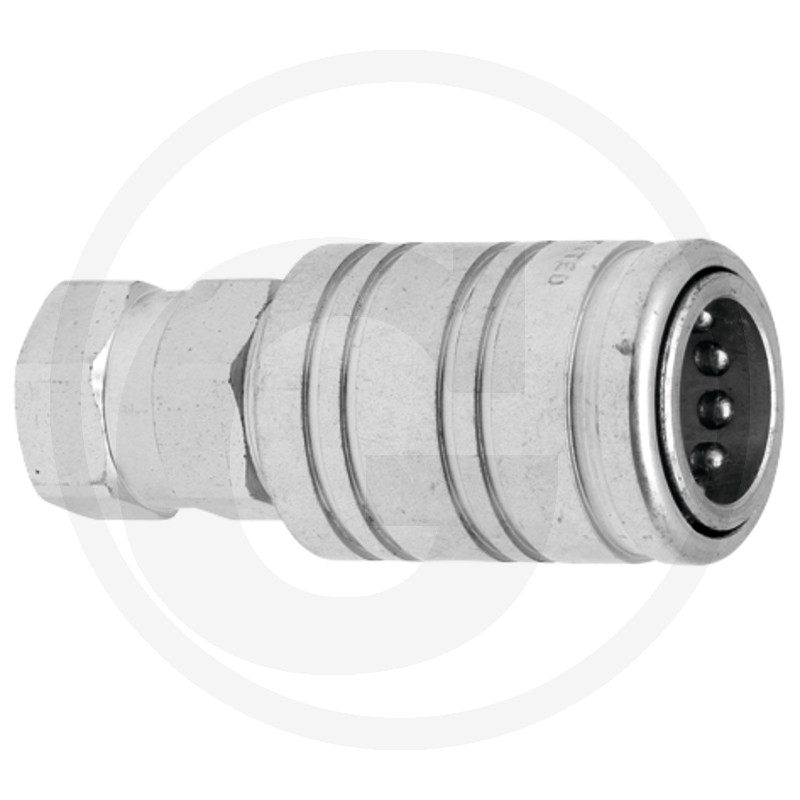

Faster 3CPV sleeve 3/4" female UNF O-ring
AGRAR FASTER plug-in coupling sleeve
Part no.: 86003130
Further information
- Thread type:
- Female UNF thread
- Nominal width:
- DN 12
- Size:
- 3
- Connection thread A:
- 3/4" UNF
- Nominal flow rate (l/min.):
- 75
- Operating pressure max. (bar):
- 250
- B (mm):
- 89,7
- D (mm):
- 38
- SW:
- 27
- Connection thread:
- 3/4" (UNF)
- Series:
- 3CPV
- Material:
- Steel, galvanised, MATE 500 (CrIII)
- Connection under pressure:
- Plug under residual pressure
- Standard:
- ISO 7241-1-A
- Version:
- Plug-in coupling sleeve
- Function:
- Breakaway function, push-pull function
- Catalogue:
- Hydraulics & pneumatics (p. 452)
Use in agricultural engineering
Standard: compatible with ISO 7241-1 part A
Material: steel, chrome(VI)-free coating
Operating temperature: -25°C to +125°C
Push-pull connection and disconnection system.
Plug can be connected under residual pressure. Breakaway function.
Standard: compatible with ISO 7241-1 part A
Material: steel, chrome(VI)-free coating
Operating temperature: -25°C to +125°C
Push-pull connection and disconnection system.
Plug can be connected under residual pressure. Breakaway function.
