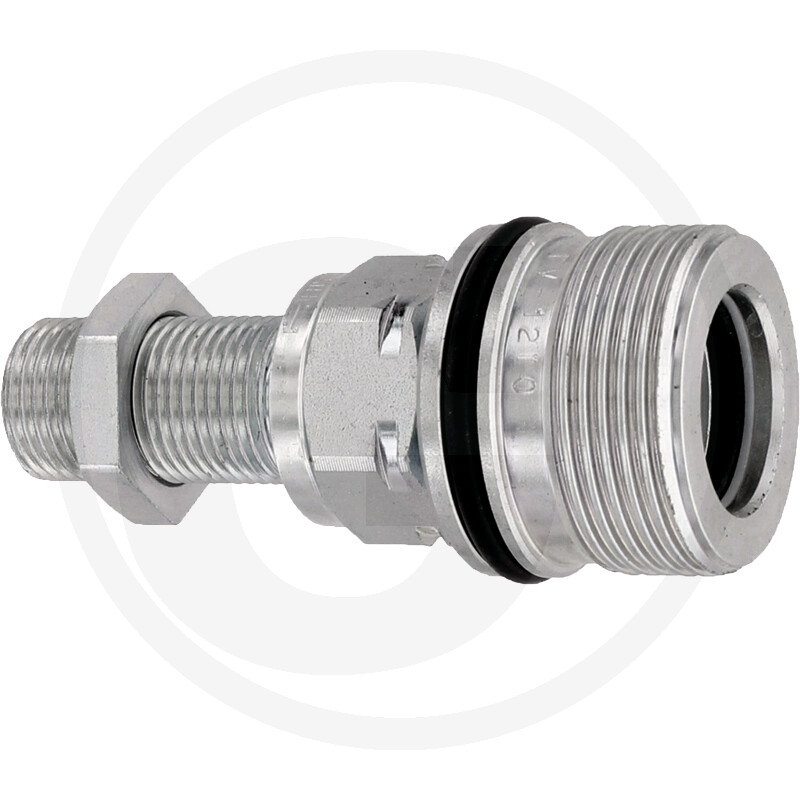

Faster CVV087/2215 FV 15L M22x1.5 bulkhead
Threaded coupling FASTER
Part no.: 86001483
Further information
- Nominal width:
- DN 12
- Size:
- 3
- Connection thread A:
- 15L, M22x1.5 for bulkhead
- Nominal flow rate (l/min.):
- 75
- PN (bar):
- 400
- B (mm):
- 72
- SW:
- 27
- Bulkhead width (mm):
- 26
- Reference no.:
- CVV087/2215 FV
- Weight:
- 242 g
Threaded couplings are designed for high-pressure or high-impulse applications. The self-locking thread prevents unwanted loosening caused by vibrations. General application for industry, construction machinery, agricultural technology. Carbon steel, chrome(VI)-free coating. Coupling under (residual) pressure of up to 50 bar is possible on both sides. The coupling must always be screwed down to the stop.
