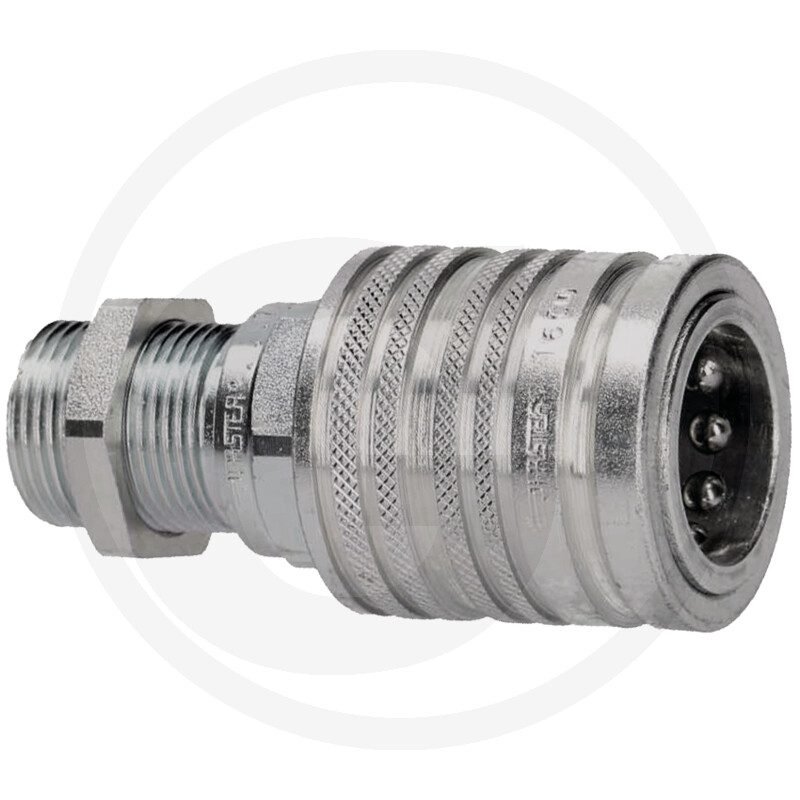

Faster CPV08 sleeve 13/16" male ORFS bulkhead

Further information

Nominal width:

DN 12

Size:

3

Connection thread A:

13/16” ORFS for bulkhead

Nominal flow rate (l/min.):

75

PN (bar):

250

B (mm):

85,3

D (mm):

38

Version:

Plug-in coupling sleeve

Bulkhead width (mm):

36,5

Connection thread:

13/16” (ORFS)

Series:

CPV

Material:

Steel, galvanised, MATE 500 (CrIII)

AF (mm):

27

Reference no.:

CPV0812/12SAEF

Standard:

ISO 7241-1-A

Function:

Breakaway function, push-pull function

Thread type:

Male thread, bulkhead ORFS

Weight:

312 g

Catalogue:

Hydraulics & pneumatics (p. 411)
