Faster FFH02 18GAS M

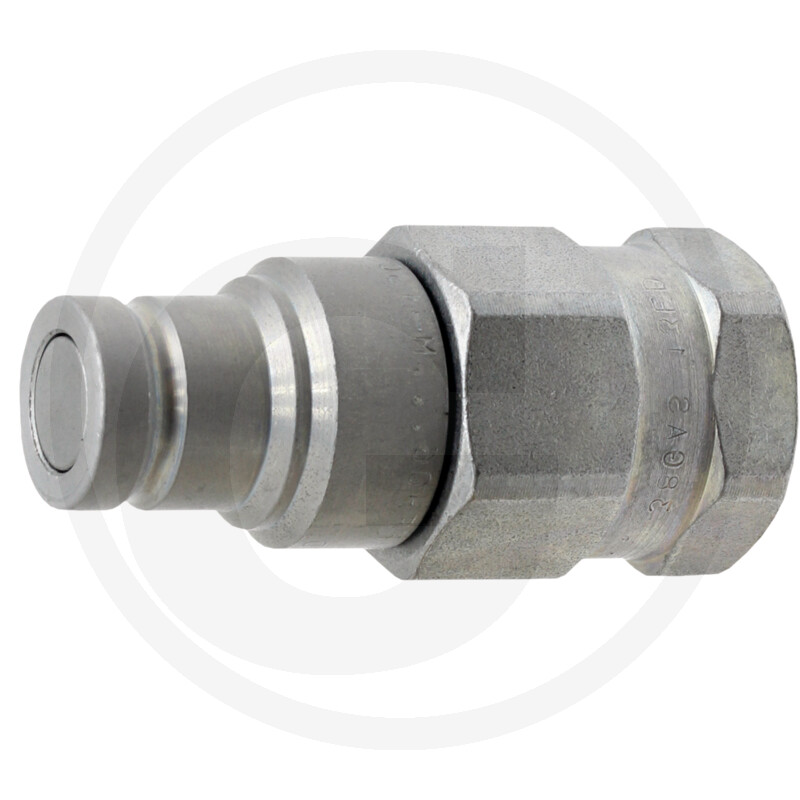

Flat coupling plug FASTER
Part no.: 86001279
Further information
- Nominal width:
- DN 04
- Size:
- 0
- Connection thread A:
- 1/8" BSP
- Nominal flow rate (l/min.):
- 12
- PN (bar):
- 350
- C (mm):
- 44
- H (mm):
- 11,6
- SW:
- 16
- Reference no.:
- FFH02 18GAS M
- Weight:
- 46 g
- Catalogue:
- Hydraulics & pneumatics (p. 432)
• General application for industry, construction machinery, agricultural technology.
• Standard: conforming to ISO 16028
• Material: steel, zinc-nickel coating
• Temperature range: -25°C to 100°C
• Connection by inserting the plug, disconnection by pulling back the locking sleeve.
• No leakage during the connection process.
• Cannot be connected under pressure.
• Standard: conforming to ISO 16028
• Material: steel, zinc-nickel coating
• Temperature range: -25°C to 100°C
• Connection by inserting the plug, disconnection by pulling back the locking sleeve.
• No leakage during the connection process.
• Cannot be connected under pressure.
