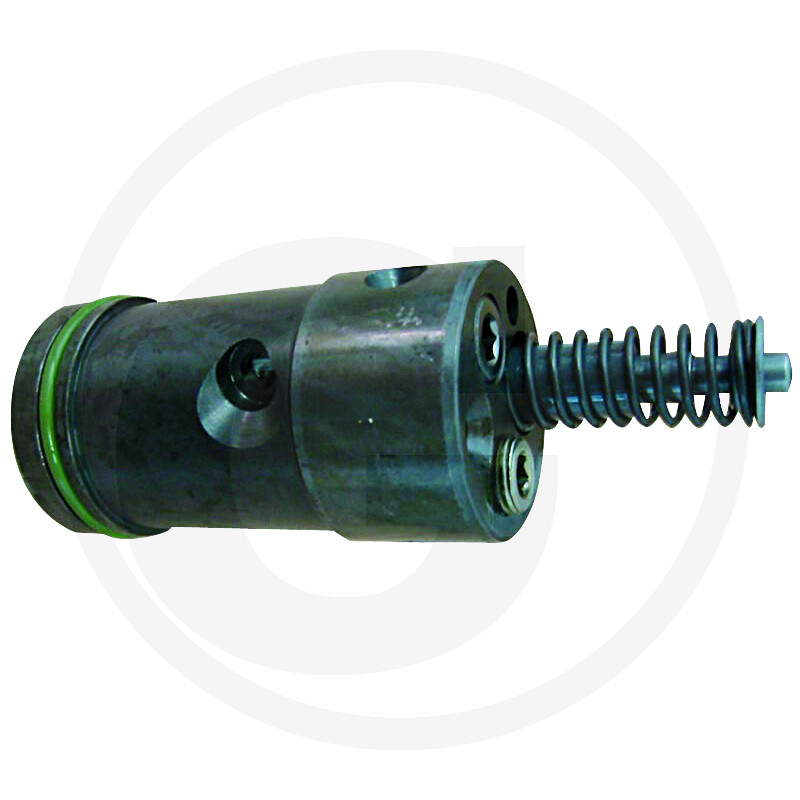

GRANIT Control unit

Further information

Technical data:

Max. operating pressure: 220 bar
Nominal flow rate: max. 40 l/min.
Tightening torque: 25 Nm
Dimensions: 220 x Ø 57.9 mm

Description:

The control valve is used in the tractor to control and regulate the power lift unit. It can also be used to lift and lower implements - attached to the lifter - continuously, to maintain a predetermined position, or to achieve optimum utilisation of the tractor power. Disturbances are corrected automatically, which makes driving easier. The control valve can be used for position control, traction control or mixed control depending on the application.

Operating pressure max. (bar):

220

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

1,67 kg

EAN codes:

4059139216529

Catalogue:

Hydraulics & pneumatics (p. 1123)

To be found in category:

Hydraulics & pneumaticsHydraulics for tractorsControl unitsDeutzDeutz System SD60
