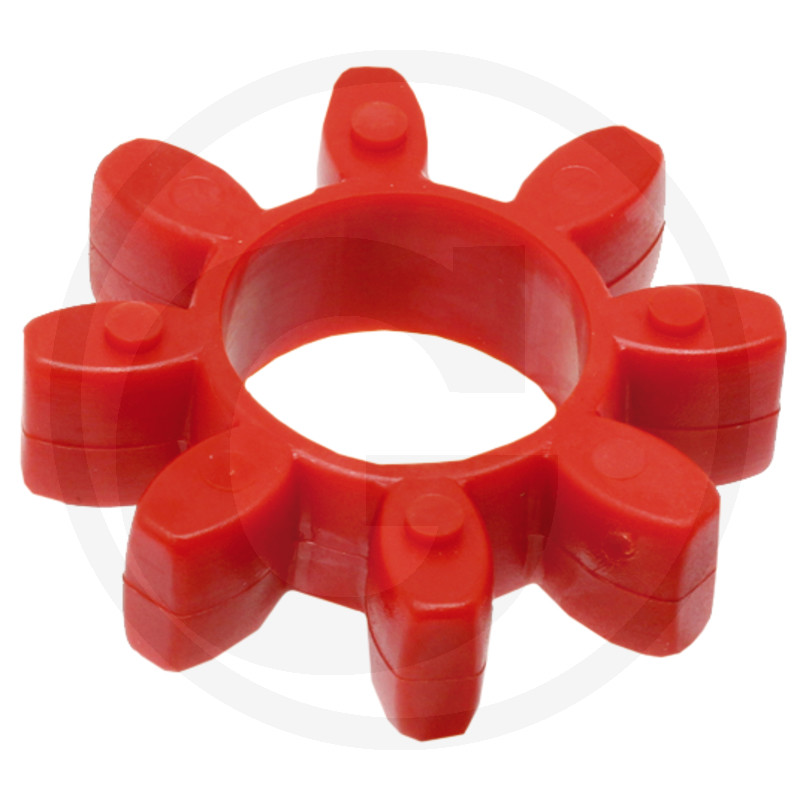

GRANIT A48/60 star 98° Shore
Part no.: 85004125
Further information
- Ø D (mm):
- -
- Ø F (mm):
- 51
- Max. speed (rpm):
- 5600
- Number of teeth:
- 8
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 90 g
- Catalogue:
- PTO shafts & drive technology (p. 526)
Torques with star 92° Shore
Clutch A28: Nominal: 95 Nm, max.: 190 Nm, in reversing mode: 25 Nm
Clutch A38: Nominal: 190 Nm, max.: 380 Nm, in reversing mode: 49 Nm
Clutch A42: Nominal: 265 Nm, max.: 530 Nm, in reversing mode: 69 Nm
Clutch A48: Nominal: 310 Nm, max.: 620 Nm, in reversing mode: 81 Nm
Clutch A55: Nominal: 410 Nm, max.: 820 Nm, in reversing mode: 107 Nm
Clutch A75: Nominal: 1280 Nm, max.: 2560 Nm, in reversing mode: 333 Nm
Torques with star 98° Shore
Clutch A28: Nominal: 160 Nm, max.: 320 Nm, in reversing mode: 42 Nm
Clutch A38: Nominal: 325 Nm, max.: 650 Nm, in reversing mode: 85 Nm
Clutch A42: Nominal: 450 Nm, max.: 900 Nm, in reversing mode: 117 Nm
Clutch A48: Nominal: 525 Nm, max.: 1050 Nm, in reversing mode: 137 Nm
Clutch A55: Nominal: 685 Nm, max.: 1370 Nm, in reversing mode: 178 Nm
Clutch A75: Nominal: 1920 Nm, max.: 3840 Nm, in reversing mode: 499 Nm
Clutch A28: Nominal: 95 Nm, max.: 190 Nm, in reversing mode: 25 Nm
Clutch A38: Nominal: 190 Nm, max.: 380 Nm, in reversing mode: 49 Nm
Clutch A42: Nominal: 265 Nm, max.: 530 Nm, in reversing mode: 69 Nm
Clutch A48: Nominal: 310 Nm, max.: 620 Nm, in reversing mode: 81 Nm
Clutch A55: Nominal: 410 Nm, max.: 820 Nm, in reversing mode: 107 Nm
Clutch A75: Nominal: 1280 Nm, max.: 2560 Nm, in reversing mode: 333 Nm
Torques with star 98° Shore
Clutch A28: Nominal: 160 Nm, max.: 320 Nm, in reversing mode: 42 Nm
Clutch A38: Nominal: 325 Nm, max.: 650 Nm, in reversing mode: 85 Nm
Clutch A42: Nominal: 450 Nm, max.: 900 Nm, in reversing mode: 117 Nm
Clutch A48: Nominal: 525 Nm, max.: 1050 Nm, in reversing mode: 137 Nm
Clutch A55: Nominal: 685 Nm, max.: 1370 Nm, in reversing mode: 178 Nm
Clutch A75: Nominal: 1920 Nm, max.: 3840 Nm, in reversing mode: 499 Nm
