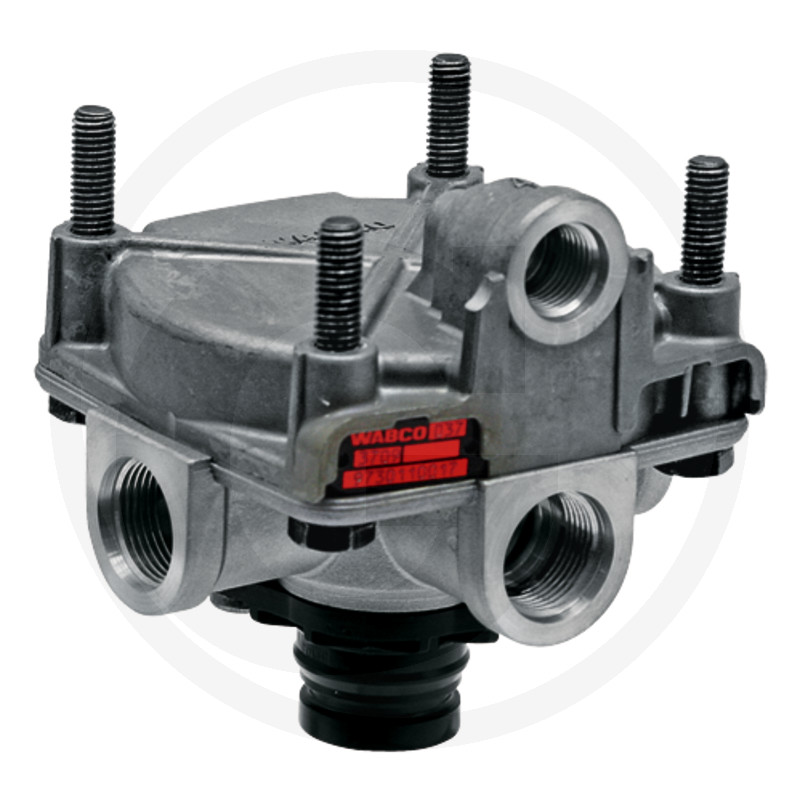

Wabco Relay valve AT

Further information

Connection thread 1:

M22 x 1.5

Connection thread 2:

M22 x 1.5

Connection thread 3:

snap

Connection thread 4:

M16 x 1.5

Operating pressure max. (bar):

13

Notes:

Operating pressure max. 10 bar
Connections Voss 230, connection 1 + 2: M22 x 1.5 / M22 x 1.5
Connection 4: M16 x 1.5
Connection 3: snap profile
Connection 3: snap profile
Response pressure 0.2 bar

Opening pressure (bar):

0,2

To fit:

a.o. - cnhtc - DAF - ERF - evobus - FAW - feldbinder - foton - langendorf - LOHR - MAN - MERCEDES-BENZ - neoplan - renault-trucks - scania - tirsan

To fit as models:

a.o. MAN Bus: Lion's City
MERCEDES-BENZ Bus: Citaro

Fixing:

4 x stud bolt M8 x 21

Control:

4: M16 x 1,5 JED-388 (VOSS 230)

Inlet connection:

1: M22 x 1,5 JED-388 (VOSS 230)

Outlet connection:

2: 2x M22 x 1,5 JED-388 (VOSS 230)

Control pressure (bar):

max. 10

Reduction ratio:

1:1

Silencer:

no

Temperature range (°C):

- 40 bis + 80

Ventilation:

Bodenventil mit snap on contour JED- 463

Weight:

834 g

EAN codes:

4057875303749

Catalogue:

Trailer and chassis parts (p. 622)

To be found in category:

Trailer and chassis partsAir brake systems & accessoriesWABCO compressed airRelay valves
