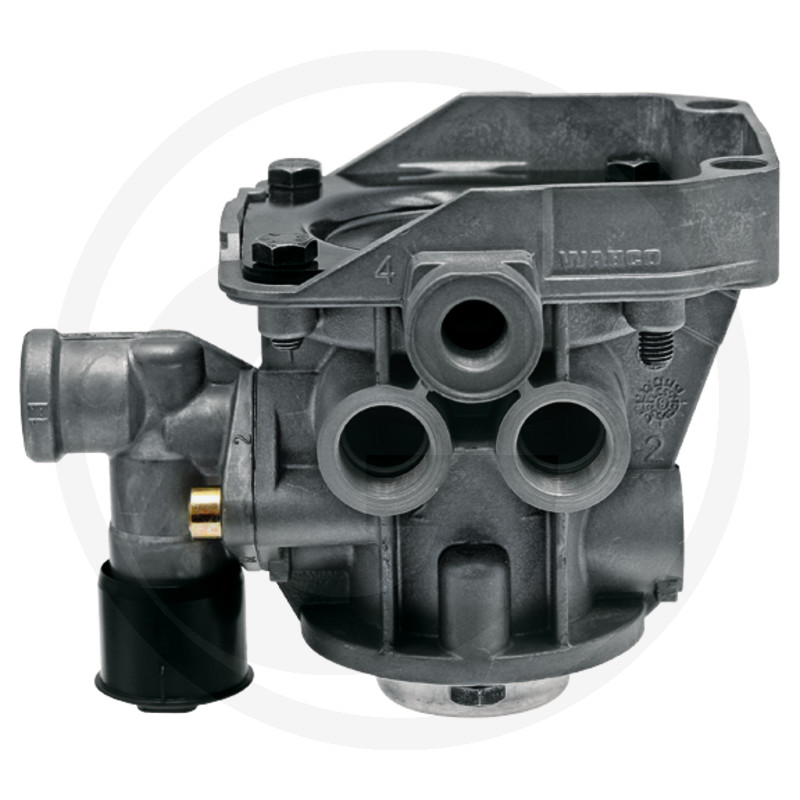

Wabco Trailer brake valve with release valve

Further information

Operating pressure max. (bar):

8.5

Fixing:

2 holes Ø 11 mm
Spacing: 71 mm

Control:

4: M16 x 1,5

Inlet connection:

1, 1-2: M22 x 1,5

Outlet connection:

2: 3 x M22 x 1,5

Adjustment range (bar):

0 - 1

Version:

• For dual-line air brake system
• With adjustable lead
• Combination of 971 002 300 0 and release valve 963 001 013 0

Additional information:

PLEASE NOTE:
This valve is no longer produced by WABCO.
The successor products are not installed in the same way.
Adjustments must be made to the connections on the vehicle.

Temperature range (°C):

-40°C to +80°C

Ventilation:

Base valve

Weight:

1,62 kg

EAN codes:

4057875301608

Catalogue:

Trailer and chassis parts (p. 618)
