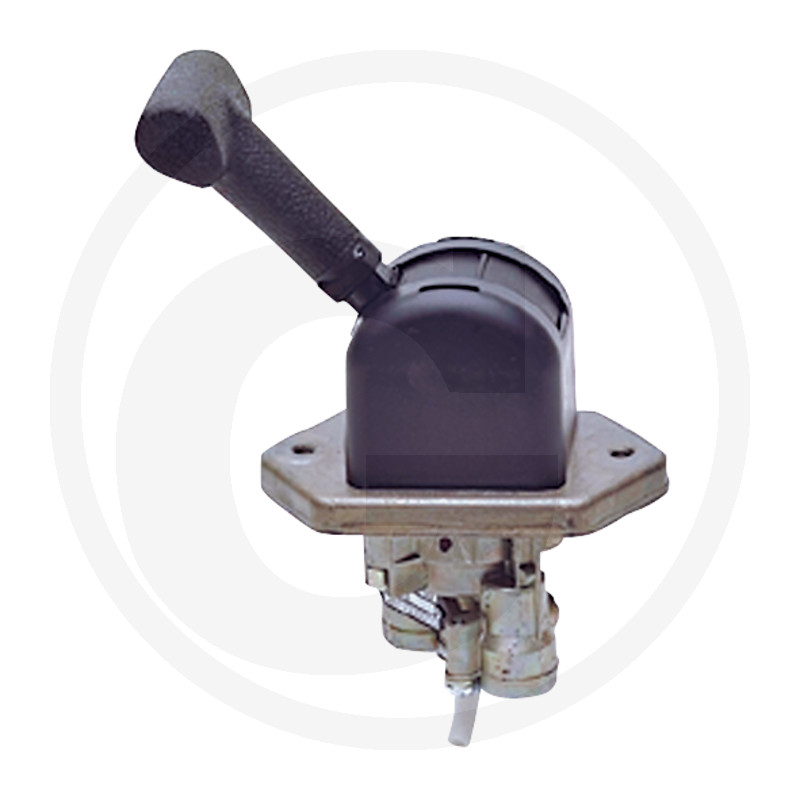

Wabco Hand brake valve

Further information

Connection:

Downwards

Operating pressure max. (bar):

10

To fit:

ALEXANDER DENNIS • DAF • FREIGHTLINER • IRISBUS • KENWORTH • MACK • MAFI • PETERBILT • SCANIA • TATRA • VAN HOOL • VDL • VOLVO-TRUCKS

Fixing:

2 holes M6 spacing 80 mm

Inlet connection:

1: M16 x 1,5 JED-464 (Voss)

Outlet connection:

21: M16 x 1,5 JED-464 (Voss)

Version:

Black lever and mounting plate

Temperature range (°C):

-40°C to +80°C

Ventilation:

Ø 6 mm 45° sideways

Description:

Exchange part

Weight:

751 g

EAN codes:

4057875296706

Catalogue:

Brakes (p. 421)

To be found in category:

BrakesCompressed air/air brake systemsWABCO3/2-way valves mechanical
