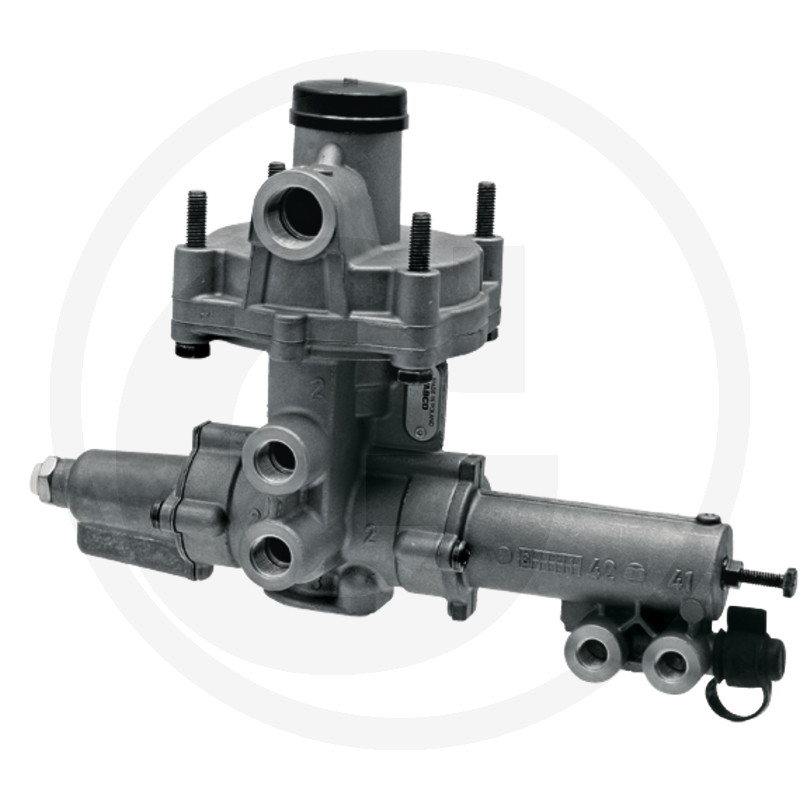

Wabco Automatic brake force
Control pressure 0.7 to 6.0 bar
Pneumatically controlled, without relay valve
Dual-circuit, universal version
Part no.: 8284757145007
Further information
- Connection thread:
- M12 x 1.5 / M16 x 1.5 / M22 x 1.5
- Operating pressure max. (bar):
- Brake part: 10
Control part: 12 - Connection:
- M12 x 1.5
M22 x 1.5 - To fit:
- Renault Trucks, etc.
- Control pressure (bar):
- 07 - 6
- Control ratio:
- 1,8
- Brake pressure (bar):
- 10
- Weight:
- 1,85 kg
- EAN codes:
- 4057875225935
- Catalogue:
- Trailer and chassis parts (p. 620)
For automatically regulating the braking force of pneumatic cylinders on axles with air suspension depending on air suspension bellows pressure and vehicle load
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
