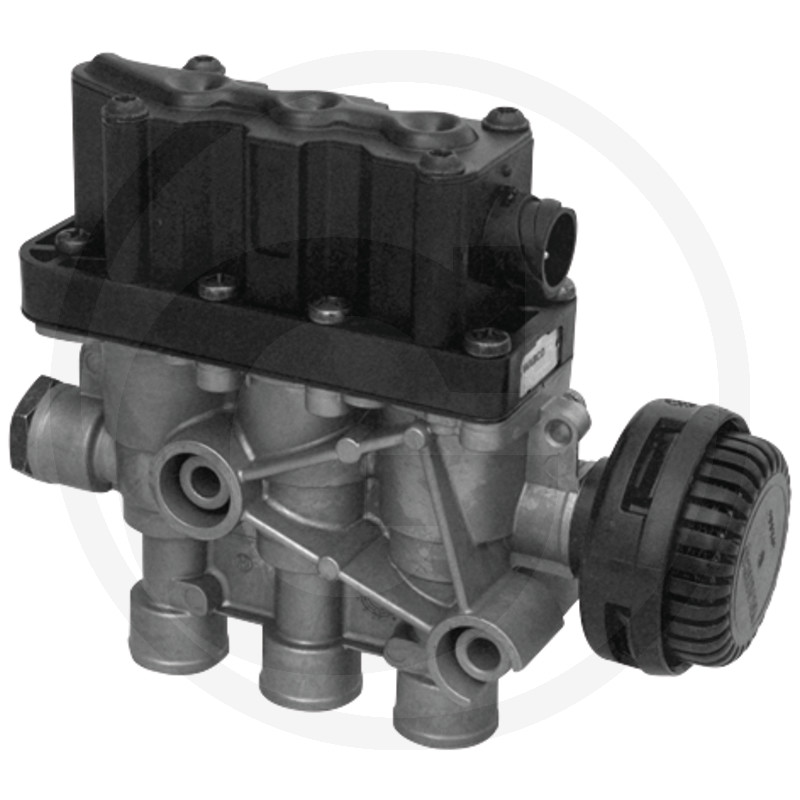

Wabco ECAS solenoid valve
Part no.: 8284728800200
Further information
- Version:
- 24V, 1 magnet
- Connection P:
- M22 x 1.5
- Connection thread:
- M22 x 1.5 JED-388
- Operating pressure max. (bar):
- 20
- Working pressure (bar):
- 5 - 13
- Nominal width (mm):
- • 21: NW9,8 • 22,23: NW7 • 11: NW1 • 3: NW2
- To fit:
- u.a. DOLL, Goldhofer, Irisbus, Iveco, KRONE, MAN, Renault-Trucks, Volvo-Trucks
- Nominal current (A):
- 0.34
- Voltage (V):
- 24
- Fixing:
- 2 Bohrungen Ø 9,0 mm
- Inlet connection:
- 11: M22 x 1,5 JED-388 (VOSS 230)
- Outlet connection:
- 21, 22, 23: M22 x 1,5 JED-388 (VOSS 230)
- Electrical connection:
- 1x bayonet DIN 72585-A1-4.2-Sn/K1
- Installation location:
- VA - 1-point control
- Additional information:
- ECAS III replaces 472 900 054 0
- Ventilation:
- closed
- Weight:
- 1,82 kg
- EAN codes:
- 7895851067066
- Catalogue:
- Trailer and chassis parts (p. 586)
- To be found in category:
- Trailer and chassis partsAir brake systems & accessoriesABS/EBS/TEBS systemsECAS solenoid valves
