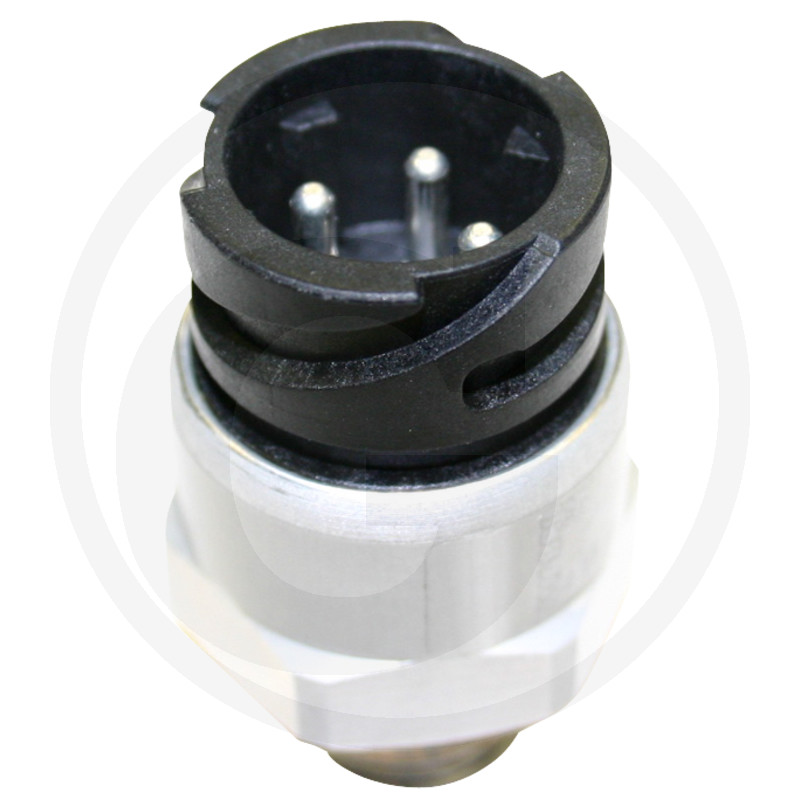

Wabco Pressure sensor

Further information

Notes:

Operating pressure max.: 16 bar
Connection thread: M 16x1.5
Voltage: 8 - 32 V DC
Resolution: 400 mV/bar; 16 counts/bar

Connection thread:

M16 x 1.5 with O-ring

Operating pressure max. (bar):

16

Length (mm):

45.8

Measuring range:

0-10 bar

To fit:

u.a. Benalu, DAF, Doll, Faymonville, Fruehauf, Iveco, Krone, Mercedes-Benz, Meritor, Meiller, Nooteboom, Renault-Trucks, Scania, Schmitz Cargobull, Van Hool, VDL, Volvo-Trucks

AF (mm):

27

Thread length (mm):

9

Pressure range (bar):

0 - 10 bar

Voltage (V):

8 - 32V DC

Electrical connection:

Bayonet DIN72585-A1-3.1-Sn/K2

Weight:

40 g

EAN codes:

7895851055193

Catalogue:

Trailer and chassis parts (p. 578)

To be found in category:

Trailer and chassis partsAir brake systems & accessoriesABS/EBS/TEBS systemsPressure sensors
