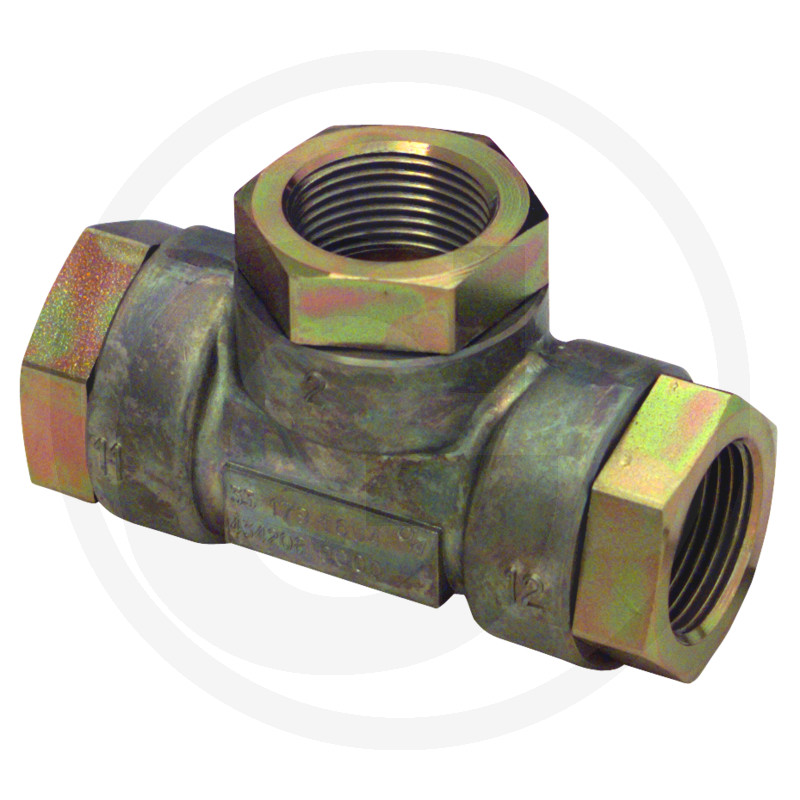

Wabco Two-way valve
Part no.: 8284342080000
Further information
- Version:
- mount overhung in pipeline
- Connection thread:
- M22 x 1,5
- Operating pressure max. (bar):
- 10
- Length (mm):
- 76
- Nominal width (mm):
- 12
- To fit:
- among others - DAF - EVOBUS - FAUN - IVECO - KEMPF - KÄSSBOHRER - LANGENDORF - LIEBHERR - MAFI - MAN - MERCEDES-BENZ - NEOPLAN - RENAULT-TRUCKS - SCANIA - SCHMITZ - STEYR - VOLVO-TRUCKS - VW
- To fit as models:
- a.o. MERCEDES-BENZ Bus: Citaro,
SETRA: MultiClass 400 - Fixing:
- to be installed overhung in the pipeline
- Inlet connection:
- 11,12: M22 x 1,5
- Outlet connection:
- 2: M22 x 1,5
- Installation location:
- Spring brake cylinder
- Type:
- Passage
- Weight:
- 263 g
- EAN codes:
- 4251116615220
- Catalogue:
- Trailer and chassis parts (p. 624)
- To be found in category:
- Trailer and chassis partsAir brake systems & accessoriesWABCO compressed airTwo-way valves
Purpose: To ventilate a line that can be controlled by two different lines or circuits.
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
