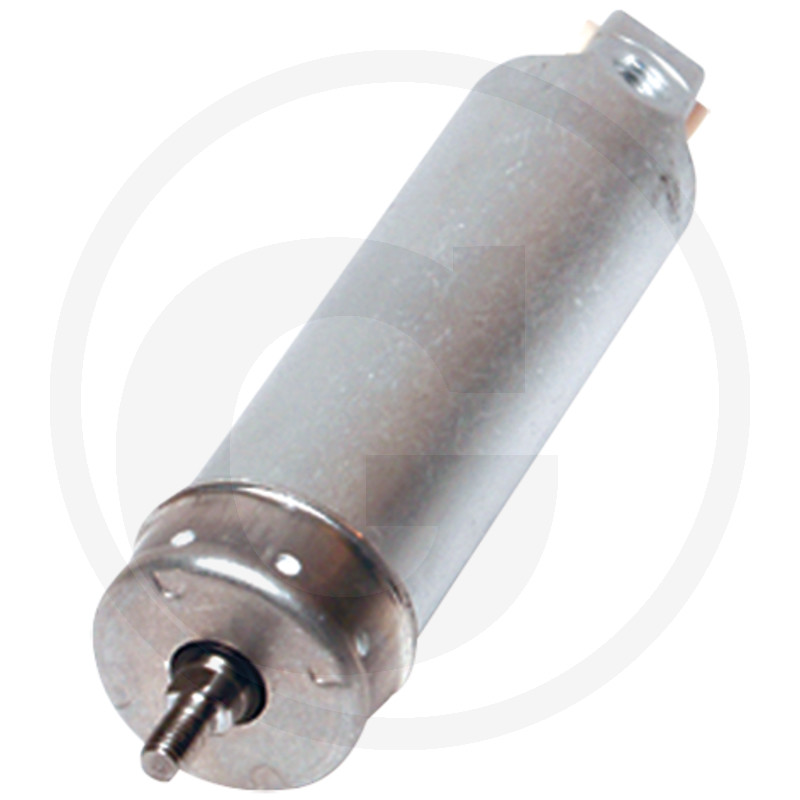

Wabco Working cylinder
Part no.: 8284214113010
Further information
- Piston Ø (mm):
- 43
- Stroke (mm):
- 78
- Connection thread:
- M12 x 1,5
- Length (mm):
- 187
- Operating pressure max. (bar):
- 10
- Power output:
- at 4.5 bar / 120 - 300 N
- Ø (mm):
- 35
- Weight:
- 483 g
- EAN codes:
- 4057875160137
- Catalogue:
- Trailer and chassis parts (p. 628)
- To be found in category:
- Trailer and chassis partsAir brake systems & accessoriesWABCO compressed airWorking cylinders
Used to adjust the fuel injection pump to the zero position when the engine’s dynamic pressure brake system is actuated, and when other types of equipment are actuated.
