Manuli R7-DN10-3/8" EN 855
MANULI hydraulic hose
Part no.: 815H30011010
Further information
- Nominal width:
- DN 10 - 3/8"
- Outer Ø (mm):
- 16,3
- Operating pressure max. (bar):
- 175
- Burst pressure (bar):
- 700
- Bending radius (mm):
- 75
- Weight (g/m):
- 330
- Type testing:
- CU-TR
- Press fitting (non-skive):
- 815M00820-06

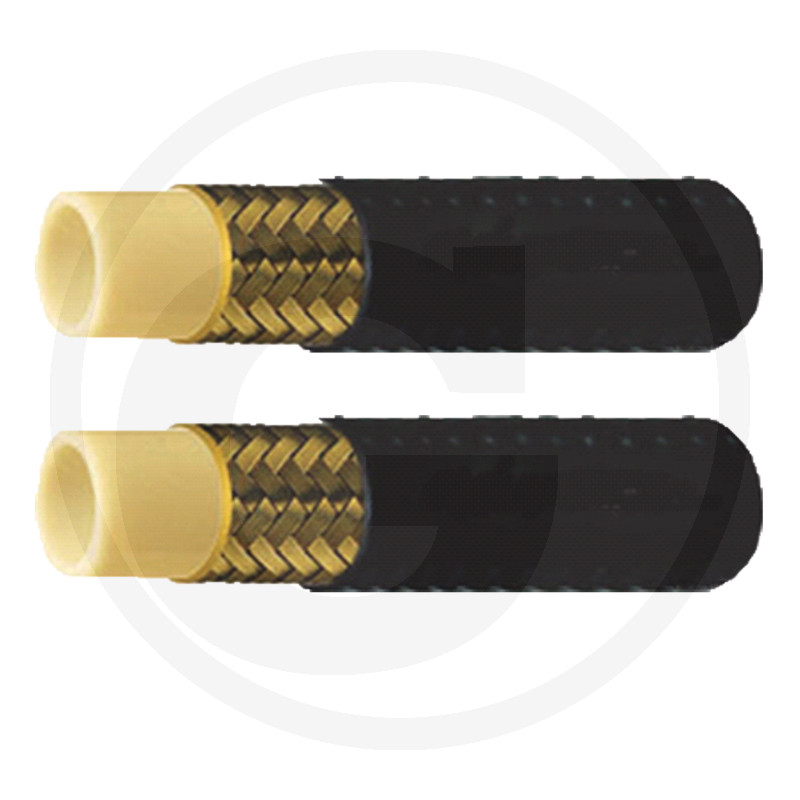

Hose: Hydrotwin
Insert: MF2000 - Multifit
Interior: oil-resistant thermoplastic elastomer Reinforcement: two polyester meshes
Cover: thermoplastic elastomer with high ozone and abrasion resistance
Applicable standards: EN 855 R7, SAE 100R7
Approvals: GOST-R
Main applications:
Average high-pressure circuits, winches, hydraulic transmissions and forklifts
Continuous operation: -40°F / +250°F
-40°C / +100°C
Max. operating temperature: 212°F / 100°C
149°F / 65°C
Recommended media: mineral oil, bio-oil, ASTM 3, polyglycol-based oil, water and water/oil emulsions
Intermediate high-pressure circuits, hoist gear, hydraulic gearing and forklifts, Permanent operation: -40°F / +250°F,
Insert: MF2000 - Multifit
Interior: oil-resistant thermoplastic elastomer Reinforcement: two polyester meshes
Cover: thermoplastic elastomer with high ozone and abrasion resistance
Applicable standards: EN 855 R7, SAE 100R7
Approvals: GOST-R
Main applications:
Average high-pressure circuits, winches, hydraulic transmissions and forklifts
Continuous operation: -40°F / +250°F
-40°C / +100°C
Max. operating temperature: 212°F / 100°C
149°F / 65°C
Recommended media: mineral oil, bio-oil, ASTM 3, polyglycol-based oil, water and water/oil emulsions
Intermediate high-pressure circuits, hoist gear, hydraulic gearing and forklifts, Permanent operation: -40°F / +250°F,
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
