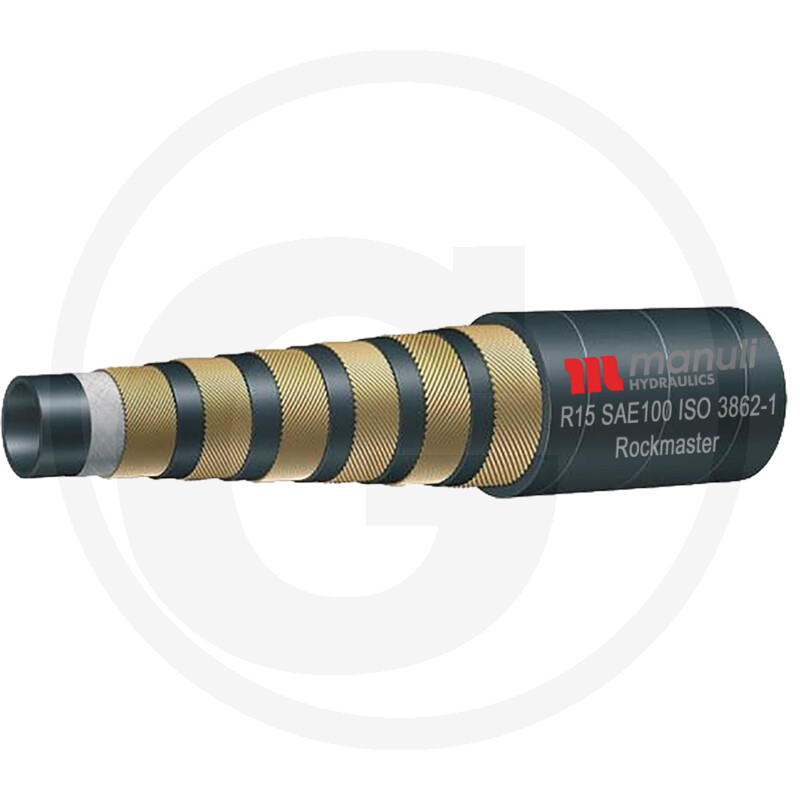

Manuli R15 DN 31 - 1 1/4" Rockmaster
MANULI hydraulic hose
Part no.: 815H10049A32
Further information
- Nominal width:
- DN 32 - 1 1/4"
- Outer Ø (mm):
- 49,5
- Operating pressure max. (bar):
- 420
- Burst pressure (bar):
- 1680
- Bending radius (mm):
- 267
- Weight (g/m):
- 3670
- Description:
- R15
- Version:
- 6 steel wire spiral inserts
- Type testing:
- ABS; BV; DNV-GL; FRAS; CU-TR; LR; MA; MSHA; B; CCS;RINA; DNV-GL(MED)
- Press fitting (skive):
- 815M01600-20
- Hose type:
- ROCKMASTER
- Weight:
- 14,51 kg
Hose: Rockmaster® / 1S
Insert: MF2000 - Interlock
Interior: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spirals (DN 19÷25)
Six high tensile steel wire spirals (DN 31÷38)
Cover: synthetic rubber with high temperature, ozone and weather resistance
Applicable standards: exceeds SAE 100 R15 - ISO 3862-1 R15
Approvals: ABS, BV, BV (MED), DNV, FRAS, GL, GOST-R, LOBA, LR, MSHA
Main applications:
High-pressure circuits, hydrostatic transmissions under heavy load, installations with abrasion problems, shipbuilding, underground and open pit mining
Continuous operation:
-40°F / +250°F
-40°C / +121°C
Max. operating temperature: 257°F 125°C
Recommended media: mineral oil, vegetable oil, rapeseed oil, glycol, polyglycol-based oil, synthetic ester-based oil, water/oil emulsions, water
Insert: MF2000 - Interlock
Interior: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spirals (DN 19÷25)
Six high tensile steel wire spirals (DN 31÷38)
Cover: synthetic rubber with high temperature, ozone and weather resistance
Applicable standards: exceeds SAE 100 R15 - ISO 3862-1 R15
Approvals: ABS, BV, BV (MED), DNV, FRAS, GL, GOST-R, LOBA, LR, MSHA
Main applications:
High-pressure circuits, hydrostatic transmissions under heavy load, installations with abrasion problems, shipbuilding, underground and open pit mining
Continuous operation:
-40°F / +250°F
-40°C / +121°C
Max. operating temperature: 257°F 125°C
Recommended media: mineral oil, vegetable oil, rapeseed oil, glycol, polyglycol-based oil, synthetic ester-based oil, water/oil emulsions, water
