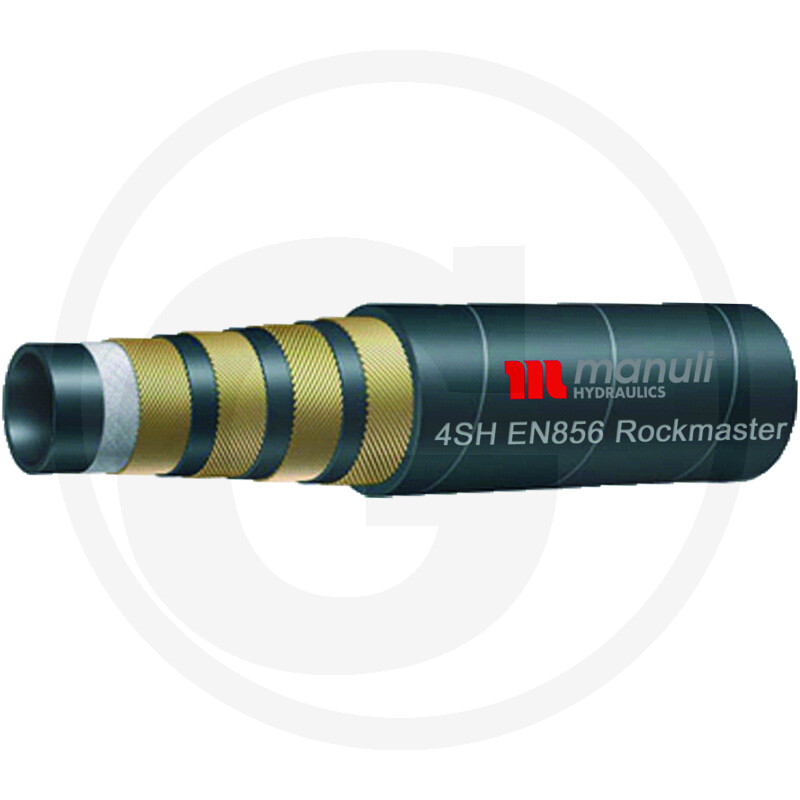

Manuli 4 SH DN 19 (3/4") ROCKMASTER
MANULI hydraulic hose
Part no.: 815H10044019
Further information
- Nominal width:
- DN 20 - 3/4"
- Outer Ø (mm):
- 31,9
- Operating pressure max. (bar):
- 420
- Burst pressure (bar):
- 1750
- Bending radius (mm):
- 210
- Weight (g/m):
- 1500
- Description:
- 4 SH, EN856
- Version:
- 4 steel wire spiral inserts
- Type testing:
- ABS; DNV-GL; DNV-GL (MED); BV; FRAS; CU-TR; LR; MA;MSHA; B; RINA; NK; CCS; KRS
- Press fitting (non-skive):
- 11383975
- Press fitting (skive):
- 815M01500-12
- Hose type:
- ROCKMASTER
- Weight:
- 1,50 kg
• Fitting: Mf2000-Multifit
• Interior: oil-resistant synthetic rubber
• Reinforcement: four high-tensile steel wire inserts
• Exterior: synthetic rubber with high temperature, ozone and abrasion resistance
• Applicable standard: exceeds EN 856 4SH - ISO 3862-4SH
• Approvals: ABS, BV, DNV, GL, GOST R, KRS, LR
• Main area of application: high pressure Continuous operation: -40°F - +212°F -40°C - +100°C Max. operating temperature: 257°F 125°C
• Recommended media: mineral oil, water, glycol water/oil emulsions, synthetic ester oil
• Interior: oil-resistant synthetic rubber
• Reinforcement: four high-tensile steel wire inserts
• Exterior: synthetic rubber with high temperature, ozone and abrasion resistance
• Applicable standard: exceeds EN 856 4SH - ISO 3862-4SH
• Approvals: ABS, BV, DNV, GL, GOST R, KRS, LR
• Main area of application: high pressure Continuous operation: -40°F - +212°F -40°C - +100°C Max. operating temperature: 257°F 125°C
• Recommended media: mineral oil, water, glycol water/oil emulsions, synthetic ester oil
