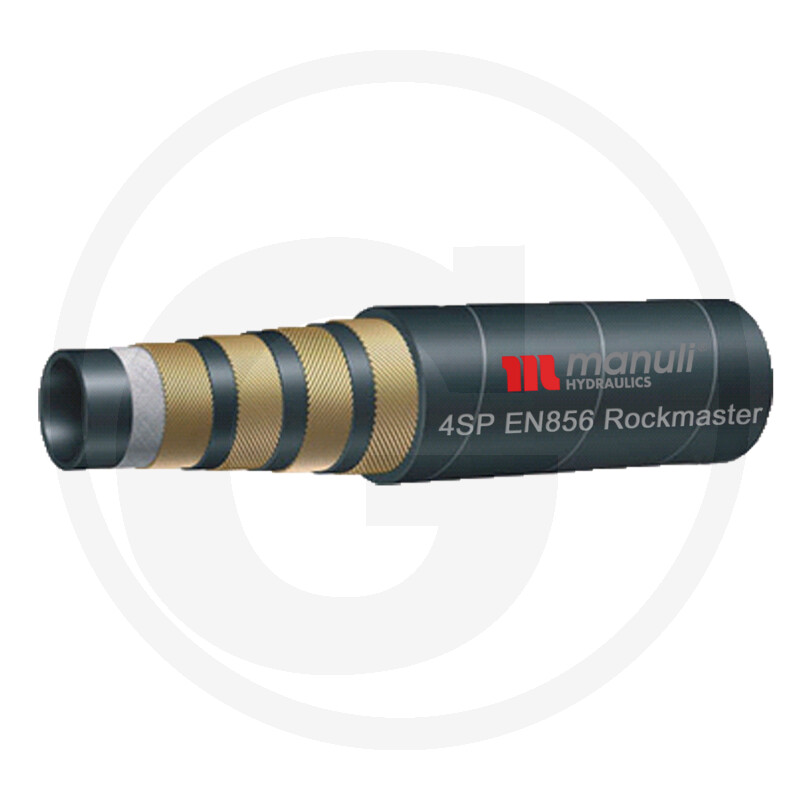

Manuli 4 SP DN 12 (1/2") ROCKMASTER
MANULI hydraulic hose
Part no.: 815H10008012
Further information
- Nominal width:
- DN 12 - 1/2"
- Outer Ø (mm):
- 24,2
- Operating pressure max. (bar):
- 420
- Burst pressure (bar):
- 1750
- Bending radius (mm):
- 175
- Weight (g/m):
- 880
- Description:
- 4 SP, EN856
- Version:
- 4 steel wire spiral inserts
- Type testing:
- ABS; DNV-GL; DNV-GL (MED); BV; FRAS; CU-TR; MA; MSHA;RINA; B; LR; NK; DB (EN 45545-2); CCS; KRS
- Press fitting (skive):
- 815M00910-08
- Hose type:
- ROCKMASTER
- Weight:
- 65,91 kg
• Fitting: Mf2000-Multifit
• Interior: oil-resistant synthetic rubber
• Reinforcement: four high-tensile steel wire inserts
• Cover: synthetic rubber with high temperature, ozone and abrasion resistance
• Applicable standard: exceeds EN 856 4SP - ISO 3862 - 4SP
• Approvals: ABS, BV, DNV, GL, GOST R, KRS, LR
• Main area of application: high pressure Continuous operation: -40°F / +212°F -40°C / +100°C
• Max. operating temperature: 257°F 125°C
• Recommended media: mineral oil, water, glycol water/oil emulsions, synthetic ester oil
• Interior: oil-resistant synthetic rubber
• Reinforcement: four high-tensile steel wire inserts
• Cover: synthetic rubber with high temperature, ozone and abrasion resistance
• Applicable standard: exceeds EN 856 4SP - ISO 3862 - 4SP
• Approvals: ABS, BV, DNV, GL, GOST R, KRS, LR
• Main area of application: high pressure Continuous operation: -40°F / +212°F -40°C / +100°C
• Max. operating temperature: 257°F 125°C
• Recommended media: mineral oil, water, glycol water/oil emulsions, synthetic ester oil
