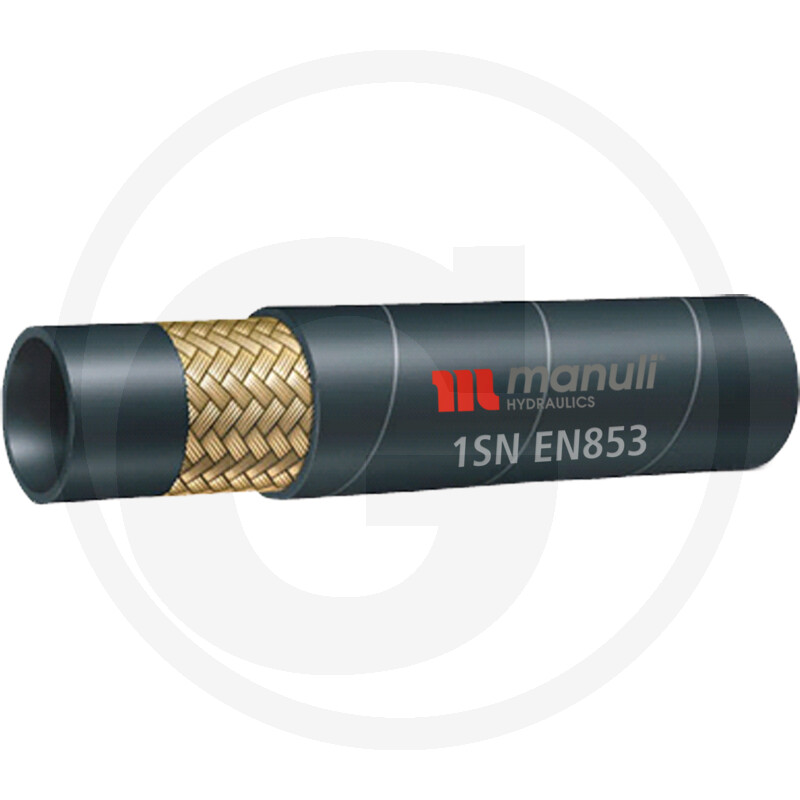

Manuli 1 SN DN 10-3/8" EN853
MANULI hydraulic hose
Part no.: 815H02004010
Further information
- Nominal width:
- DN 10 - 3/8"
- Outer Ø (mm):
- 17,1
- Operating pressure max. (bar):
- 180
- Burst pressure (bar):
- 720
- Bending radius (mm):
- 127
- Weight (g/m):
- 340
- Description:
- 1 SN, EN853
- Version:
- 1 Steel wire braid
- Type testing:
- MSHA, ABS; BV; DNV-GL; NK; CU-TR; KRS; LR; DNV-GL(MED)
- Press fitting (non-skive):
- 815M03400-06
- Press fitting (skive):
- 815M00120-06
- Hose type:
- ROCKMASTER
- Weight:
- 170 g
• Hose: Rockmaster® / 1SN
• Fitting: MF2000 - MULTIFIT
• Interior: oil-resistant synthetic rubber
• Reinforcement: one high-tensile steel wire braid
• Cover: environmentally friendly synthetic rubber
• Applicable standard: EN 853 1 SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT
• Approvals: BV (DN 5÷51), DNV, FRAS (DN 5÷12), GL (DN 5÷51), GOST-R, KRS, LR
• Main area of application: low- and medium-pressure circuits, return lines Continuous operation: -40°F - +212°F -40°C - +100°C Max. operating temperature: 250°F 121°C
• Recommended media: mineral oil, water, polyglycol-based oil, synthetic ester-based water/oil emulsions, rapeseed oil
• Fitting: MF2000 - MULTIFIT
• Interior: oil-resistant synthetic rubber
• Reinforcement: one high-tensile steel wire braid
• Cover: environmentally friendly synthetic rubber
• Applicable standard: EN 853 1 SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT
• Approvals: BV (DN 5÷51), DNV, FRAS (DN 5÷12), GL (DN 5÷51), GOST-R, KRS, LR
• Main area of application: low- and medium-pressure circuits, return lines Continuous operation: -40°F - +212°F -40°C - +100°C Max. operating temperature: 250°F 121°C
• Recommended media: mineral oil, water, polyglycol-based oil, synthetic ester-based water/oil emulsions, rapeseed oil
