Manuli SUPERJET PLUS DN 06-1/4"
MANULI hydraulic hose
Part no.: 815H01A78006
Further information
- Nominal width:
- DN 6 - 1/4"
- Outer Ø (mm):
- 14,7
- Operating pressure max. (bar):
- 400
- Burst pressure (bar):
- 1600
- Bending radius (mm):
- 55
- Weight (g/m):
- 350
- Swage ferrule:
- 815M03400-04
- Weight:
- 150 g

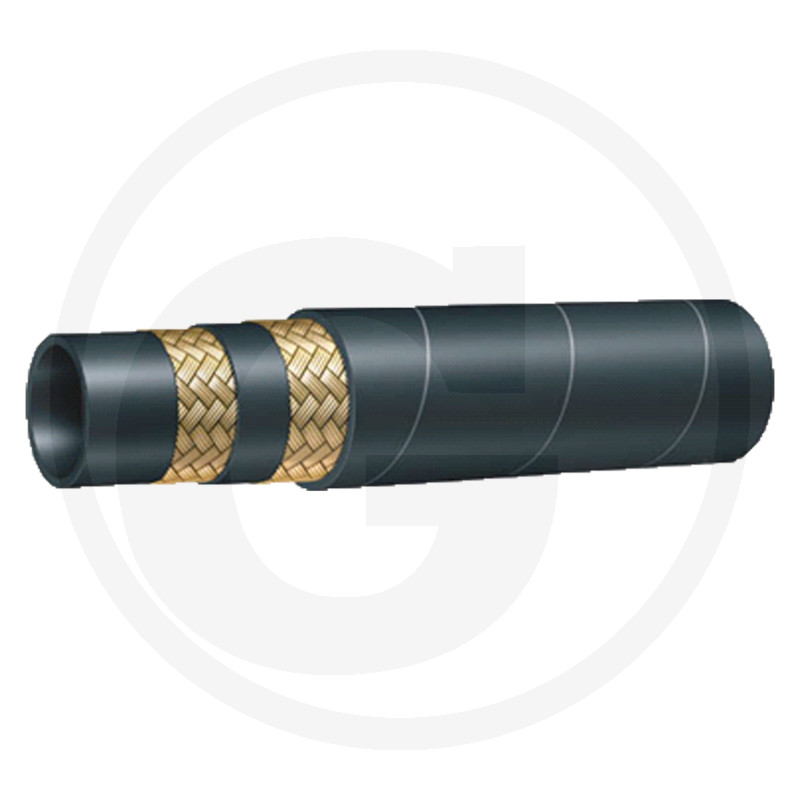

Hose: Superjet™ / Plus
INSERT: MF2000 - MULTIFIT
INTERIOR: water-resistant synthetic rubber
REINFORCEMENT: two high-tensile steel wire meshes COVER: environmentally friendly rubber
APPLIED STANDARD:
MANULI Design
APPROVALS: GOST-R
Main areas of application:
Professional high-pressure cleaning with water
Permanent operation:
+15°F / +275°F
-10°C / +135°C
Max. operating temperature:
300°F 150°C
Recommended media:
Mineral oil, water, polyglycol-based oil, synthetic ester-based oil, rapeseed oil, water/oil emulsions
INSERT: MF2000 - MULTIFIT
INTERIOR: water-resistant synthetic rubber
REINFORCEMENT: two high-tensile steel wire meshes COVER: environmentally friendly rubber
APPLIED STANDARD:
MANULI Design
APPROVALS: GOST-R
Main areas of application:
Professional high-pressure cleaning with water
Permanent operation:
+15°F / +275°F
-10°C / +135°C
Max. operating temperature:
300°F 150°C
Recommended media:
Mineral oil, water, polyglycol-based oil, synthetic ester-based oil, rapeseed oil, water/oil emulsions
