Manuli 2 SC DN 25-1" EN857 Rockmaster
Hydraulikschlauch MANULI
Part no.: 815H01030025
Further information
- Nominal width:
- DN 25 - 1"
- Outer Ø (mm):
- 35,2
- Operating pressure max. (bar):
- 210
- Burst pressure (bar):
- 840
- Bending radius (mm):
- 150
- Description:
- 2 SC, EN857
- Version:
- 2 Stahldrahtgeflechte
- Type testing:
- ABS; BV; DNV-GL; CU-TR; LR; MSHA; RINA; B; FRAS; CCS;NK; DNV-GL(MED)
- Press fitting (non-skive):
- 815M03400-16
- Press fitting (skive):
- 815M00120-16
- Hose type:
- ROCKMASTER
- Weight:
- 1,27 kg

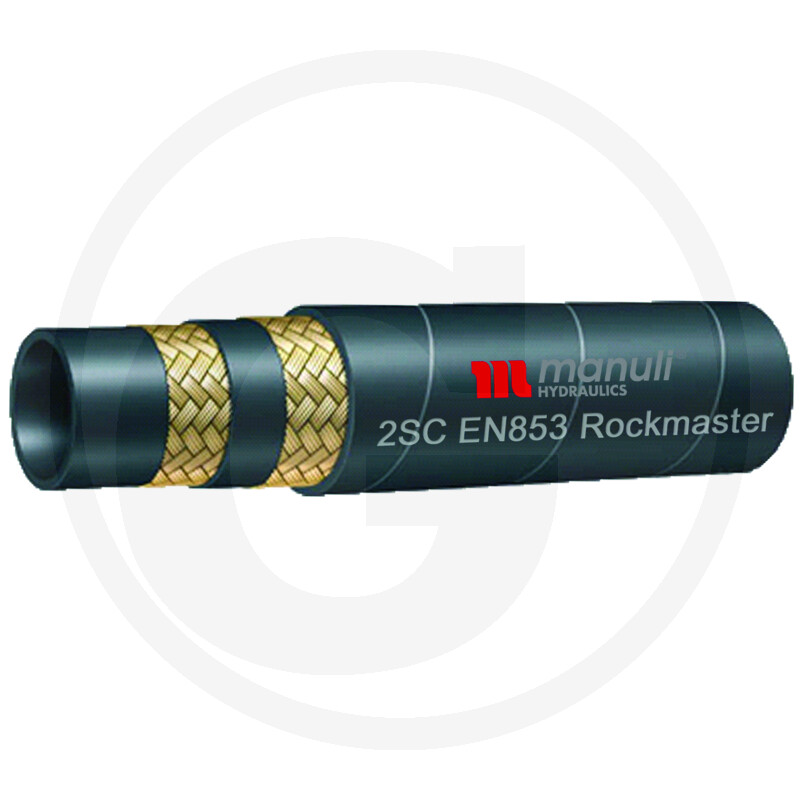

Hose: Rockmaster® / 2SC
INSERT: MF2000 - MULTIFIT
INTERIOR: oil-resistant synthetic rubber REINFORCEMENT: two high tensile steel wire meshes
COVER: synthetic rubber with high ozone, weather and heat resistance
APPLICABLE STANDARDS: exceeds EN 857 2SC - ISO 11237-1 2SC, SAE 100 R 16S; and: DN 25 SAE 100 R17, ISO 11237-1 R17
APPROVALS: GOST-R, LOBA, LR, MSHA, RINA (DN 6÷31), DN (8÷25)
Main applications:
Average high-pressure lines with installation constraints in difficult conditions, installation with severe abrasion, marine applications, underground and open pit mining
Continuous operation:
-40°F / +212°F
-40°C / +100°C
Max. operating temperature:
257°F 125°C
Recommended media:
Mineral oil, vegetable oil, glycol, water, polyglycol-based oil, rapeseed oil, synthetic ester-based water/oil emulsions
INSERT: MF2000 - MULTIFIT
INTERIOR: oil-resistant synthetic rubber REINFORCEMENT: two high tensile steel wire meshes
COVER: synthetic rubber with high ozone, weather and heat resistance
APPLICABLE STANDARDS: exceeds EN 857 2SC - ISO 11237-1 2SC, SAE 100 R 16S; and: DN 25 SAE 100 R17, ISO 11237-1 R17
APPROVALS: GOST-R, LOBA, LR, MSHA, RINA (DN 6÷31), DN (8÷25)
Main applications:
Average high-pressure lines with installation constraints in difficult conditions, installation with severe abrasion, marine applications, underground and open pit mining
Continuous operation:
-40°F / +212°F
-40°C / +100°C
Max. operating temperature:
257°F 125°C
Recommended media:
Mineral oil, vegetable oil, glycol, water, polyglycol-based oil, rapeseed oil, synthetic ester-based water/oil emulsions
In accordance with EN 853/857 it is permitted for 50 m rolls to consist of a maximum of two lengths. The shorter piece is at least 10 m long.
