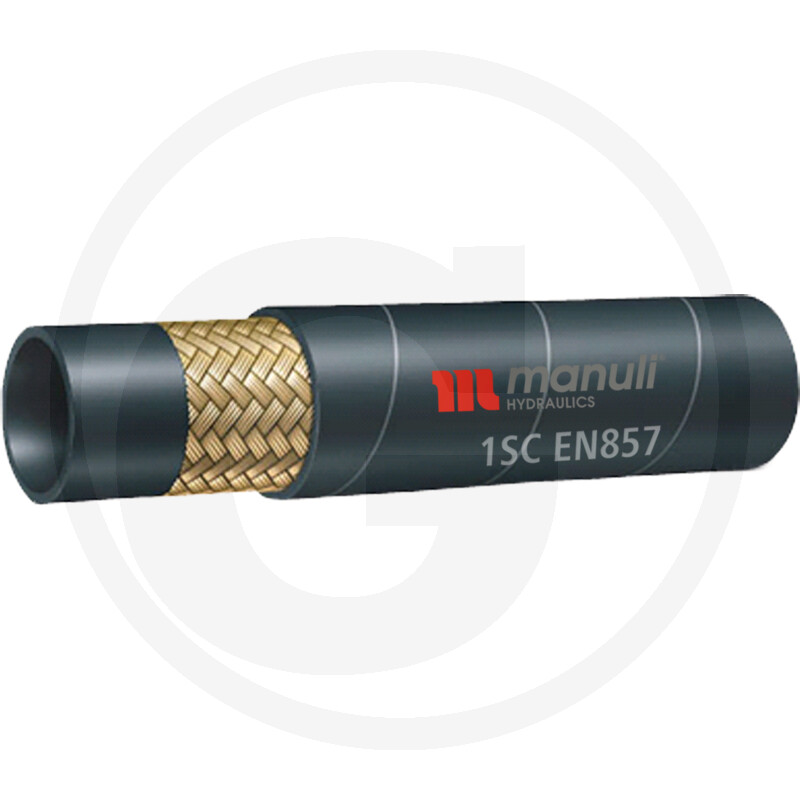

Manuli 1 SC DN 10-3/8" EN857
MANULI hydraulic hose
Part no.: 815H01013010
Further information
- Nominal width:
- DN 10 - 3/8"
- Outer Ø (mm):
- 15,5
- Operating pressure max. (bar):
- 180
- Burst pressure (bar):
- 900
- Bending radius (mm):
- 60
- Weight (g/m):
- 255
- Description:
- 1 SC, EN857
- Version:
- 1 steel wire braid
- Type testing:
- CU-TR; LR; MSHA; ABS; CCS; DNV-GL
- Press fitting (non-skive):
- 815M03300-06
- Press fitting (skive):
- 815M00120-06
- Hose type:
- ROCKMASTER
- Weight:
- 244 g
• Hose: Rockmaster® / 1SC
• Fitting: MF2000 MULTIFIT
• Interior: oil-resistant synthetic rubber
• Reinforcement: one high-tensile steel wire braid
• Cover: environmentally friendly synthetic rubber
• Applicable standard: EN 857 1SC y ISO 11237-1 1SC Approvals: ABS, GL, GOST-R, LR
• Main area of application: medium-pressure series with installation problems, pilot hoses (return lines DN 31)
• Continuous operation: -40°F / +212°F -40°C / + 100°C
• Max. operating temperature: 250°F 121°C
• Recommended media: mineral oil, water, polyglycol-based oil, synthetic ester-based water/oil emulsions, rapeseed oil
• Fitting: MF2000 MULTIFIT
• Interior: oil-resistant synthetic rubber
• Reinforcement: one high-tensile steel wire braid
• Cover: environmentally friendly synthetic rubber
• Applicable standard: EN 857 1SC y ISO 11237-1 1SC Approvals: ABS, GL, GOST-R, LR
• Main area of application: medium-pressure series with installation problems, pilot hoses (return lines DN 31)
• Continuous operation: -40°F / +212°F -40°C / + 100°C
• Max. operating temperature: 250°F 121°C
• Recommended media: mineral oil, water, polyglycol-based oil, synthetic ester-based water/oil emulsions, rapeseed oil
