Stucchi KM-VP 3/4" IR 3
Part no.: 81511402
Further information
- Size:
- 3
- Operating pressure max. (bar):
- 550
- DN (mm):
- 13
- G (mm):
- 174.9
- Thread A:
- G 3/4" BSP

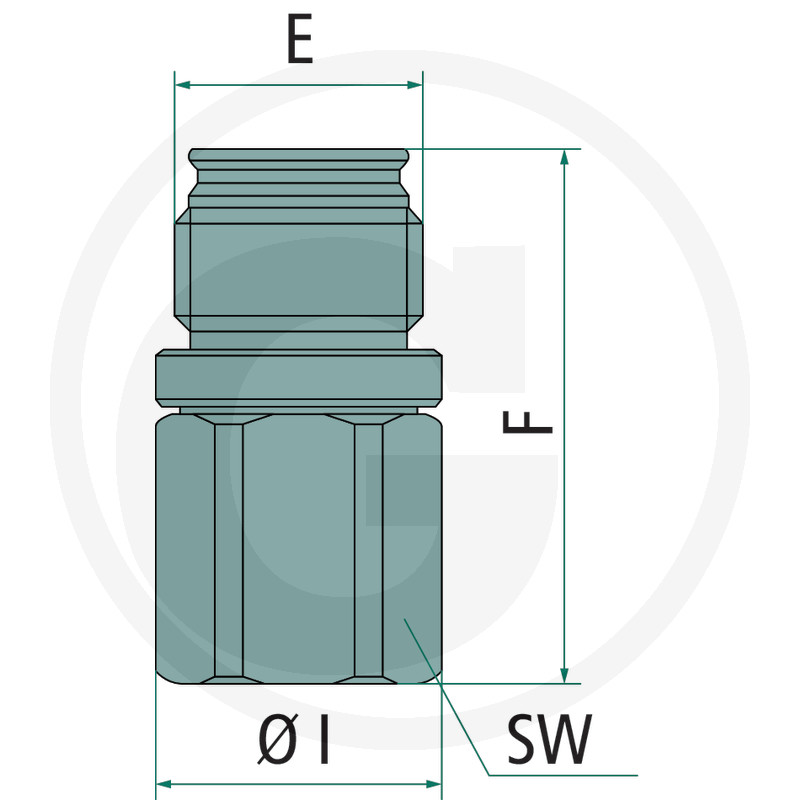

- E (mm):
- M36 x 3
- F (mm):
- 83.2
- AF (mm):
- 36
- Weight:
- 10 g
- Catalogue:
- Hydraulics & pneumatics (p. 562)
FLAT-FACE SCREW COUPLING
VP series, can be coupled under pressure
General technical features
• Material: highly resistant carbon steel
• Housing: galvanised/QPQ
• Optimum number of locking balls for excellent durability
• Protection against unwanted uncoupling
• Springs made of C 72 or AISI 302 to protect against rust
• Specially shaped support ring made of Teflon, NBR seal 75 Shore, temperature-resistant between -20°C and +100°C
Never apply pressure pulses to the sleeve when uncoupled.
The coupling is equipped with a locking ring on the plug which prevents unwanted uncoupling (e.g. due to vibrations on the excavator arm).
VP series, can be coupled under pressure
General technical features
• Material: highly resistant carbon steel
• Housing: galvanised/QPQ
• Optimum number of locking balls for excellent durability
• Protection against unwanted uncoupling
• Springs made of C 72 or AISI 302 to protect against rust
• Specially shaped support ring made of Teflon, NBR seal 75 Shore, temperature-resistant between -20°C and +100°C
Never apply pressure pulses to the sleeve when uncoupled.
The coupling is equipped with a locking ring on the plug which prevents unwanted uncoupling (e.g. due to vibrations on the excavator arm).
