Parker L: 20 m 2 SN DN 20-3/4" EN 853

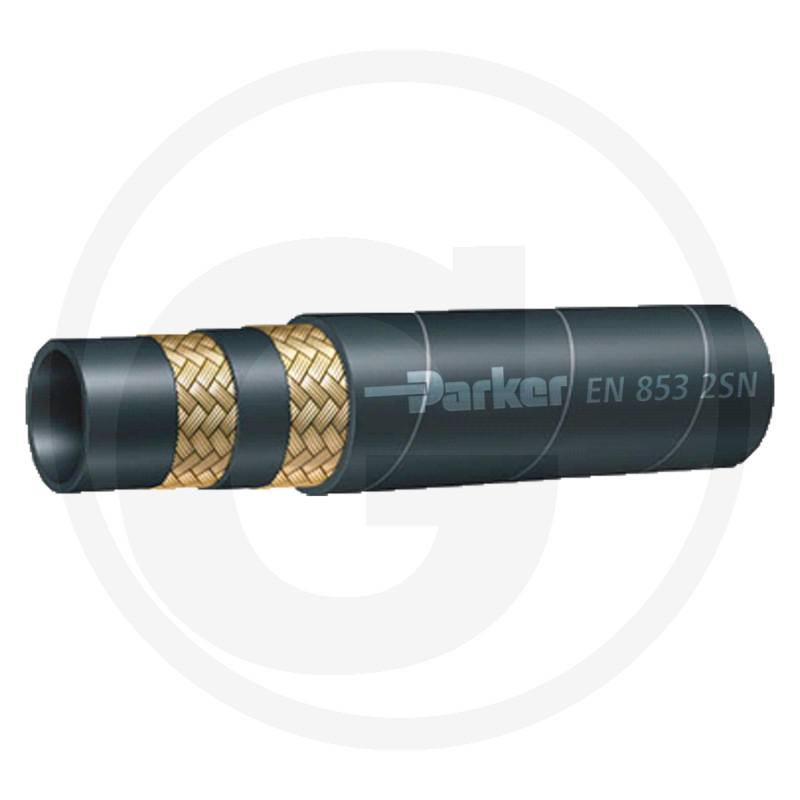

PARKER hydraulic hose
Part no.: 81502748
Further information
- Nominal width:
- DN 20 - 3/4"
- Outer Ø (mm):
- 29,3
- Operating pressure max. (bar):
- 215
- Roll length (m):
- 20
- Bending radius (mm):
- 240
- Weight (g/m):
- 1000
- Weight:
- 23,00 kg
Main features
Approved by:
• Germanischer Lloyd (GL)
• Det Norske Veritas (DNV)
• RINA (Registro Italiano Navale)
• Deutsche Bahn (DB)
• Lloyd's Register (LR) Non-skive technology with a thin outer layer Nitrile (NBR) inner layer
• Improved chemical resistance
Main applications/restrictions
For all medium-pressure hydraulic applications, including agricultural equipment, industrial hydraulics, machine tools and general hydraulic applications.
• Interior structure: nitrile rubber (NBR)
• Reinforcement: two high-tensile steel braid inserts
• Cover: synthetic rubber
• Recommended media: mineral oil-based hydraulic fluids, water/glycol and lubricating oils, air and water. For air and gas applications where the pressure exceeds 1.7 MPa, the outer layer must be perforated.
• Temperature range -40°C to +100°C Exception: Air max. +70°C Water max. +85°C
Approved by:
• Germanischer Lloyd (GL)
• Det Norske Veritas (DNV)
• RINA (Registro Italiano Navale)
• Deutsche Bahn (DB)
• Lloyd's Register (LR) Non-skive technology with a thin outer layer Nitrile (NBR) inner layer
• Improved chemical resistance
Main applications/restrictions
For all medium-pressure hydraulic applications, including agricultural equipment, industrial hydraulics, machine tools and general hydraulic applications.
• Interior structure: nitrile rubber (NBR)
• Reinforcement: two high-tensile steel braid inserts
• Cover: synthetic rubber
• Recommended media: mineral oil-based hydraulic fluids, water/glycol and lubricating oils, air and water. For air and gas applications where the pressure exceeds 1.7 MPa, the outer layer must be perforated.
• Temperature range -40°C to +100°C Exception: Air max. +70°C Water max. +85°C
Specifications: EN 853 2SN - SAE 100 R2 AT
