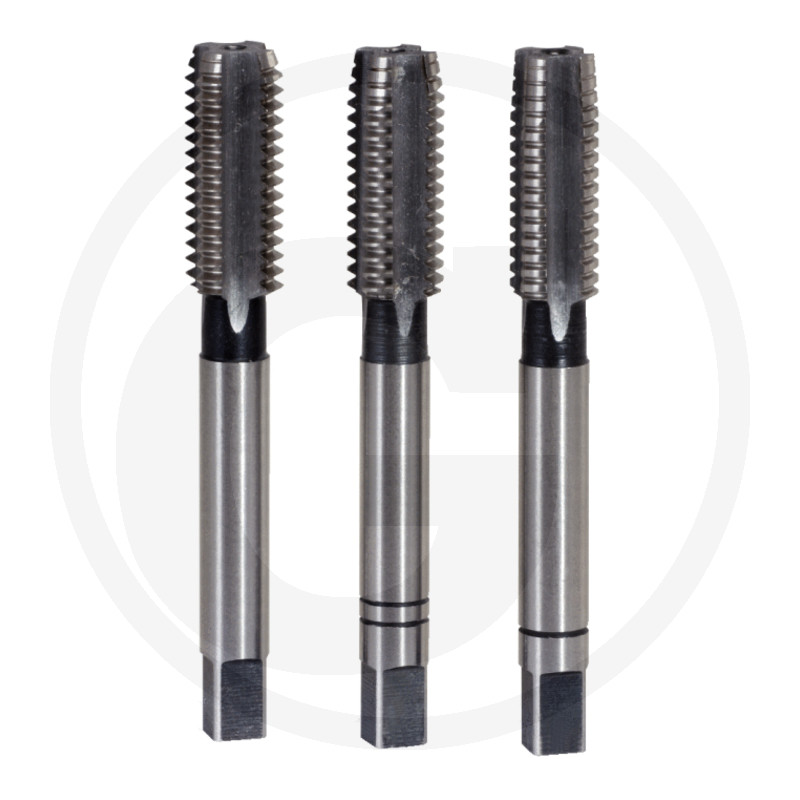

KS Tools HSS tap set M, 3pcs, M6x1

Further information

Description:

• DIN 352
• Toleranz nach ISO 2/6H
• rechtsschneidend
• inklusive Vor-, Mittel- und Nachschneider
• für Durchgangs- und Sacklochgewinde
• mit hinterschliffenen Flanken
• blanke Oberfläche
• Hochleistungs-Schnellstahl
Ideal einsetzbar in unlegierten und niedriglegierten Stählen bis 800 N/mm² Festigkeit, Tempergüssen und NE-Metallen.

Width (mm):

26

For thread:

M6 x 1

Height (mm):

15

Length (mm):

72

Technical data:

receiver = M6 x 1.0
DIN = DIN 352
individual second tap = 7883310327
individual bottom tap = 7883310347
individual taper tap = 7883310307
weight in g = 30g
inner hole measurement in mm = 5.0 mm
total length L1 in mm = 56.0mm
part length L2 in mm = 15.0mm
material1 = high performance steel
second tap = ca. 4 - 5 cutting gears
bottom tap = ca. 2 - 3 cutting gears
surface = polished
cutting material = HSS
cutting direction = right
flute length = 41 mm
parts in the set = 3 pcs
taper tap = ca. 5 - 6 cutting gears

Weight:

30 g

EAN codes:

4042146233665
