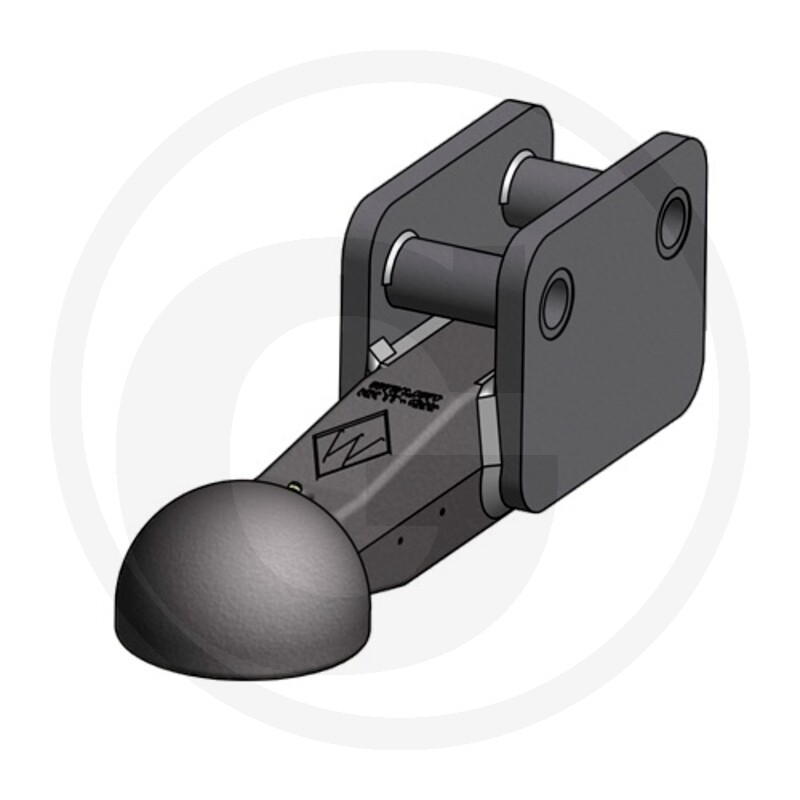

Walterscheid Spherical cap
Part no.: 770ZKK80-230
Further information
- D-value (kN):
- 50,2 / 49,9 / 47,9
- Flange:
- 2-hole
- Load capacity (kg):
- 2000 / 1500 / 1000
- Hole pattern (mm):
- 122,5
- Hole (mm):
- M25
- No. of holes:
- 2
- Colour:
- black
- Lock:
- ball 80
- Overhang (mm):
- 230
- Description:
- This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers.
Product advantages:
forged
designed for the highest loads
optimum clearance for angular movement of up to 36°
grooves on the inside ensure optimum distribution of lubricating grease - Assembly notes:
- ISO 24347
- Weight:
- 24,00 kg
- To be found in category:
- Trailer hitchesBall hitchesWalterscheid ball hitches
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
