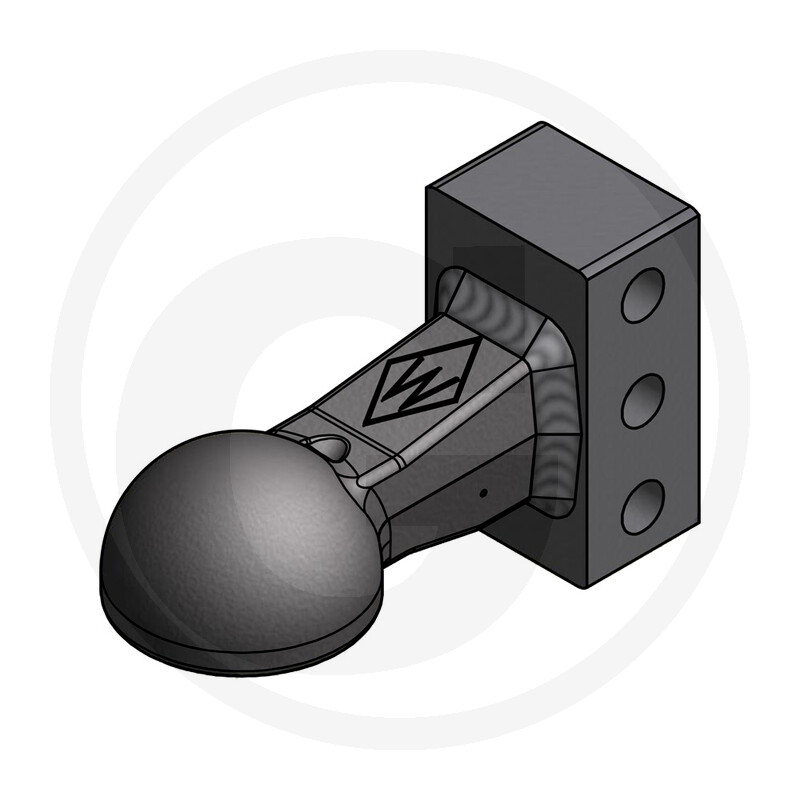

Walterscheid Spherical cap
Part no.: 770ZKK80-157
Further information
- D-value (kN):
- 68,7
- Load capacity (kg):
- 1500
- Hole (mm):
- M26
- No. of holes:
- 3
- Colour:
- Black
- Lock:
- ball 80
- Overhang (mm):
- 200
- Description:
- This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers.
Product advantages:
forged
designed for the highest loads
optimum clearance for angular movement of up to 36°
grooves on the inside ensure optimum distribution of lubricating grease - Length (mm):
- 312
- EC certification mark:
- EG-Nr.: E1 55R-012667
- Assembly notes:
- Spherical cap according to ISO 24347
- Weight:
- 15,50 kg
- To be found in category:
- Trailer hitchesBall hitchesWalterscheid ball hitches
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
