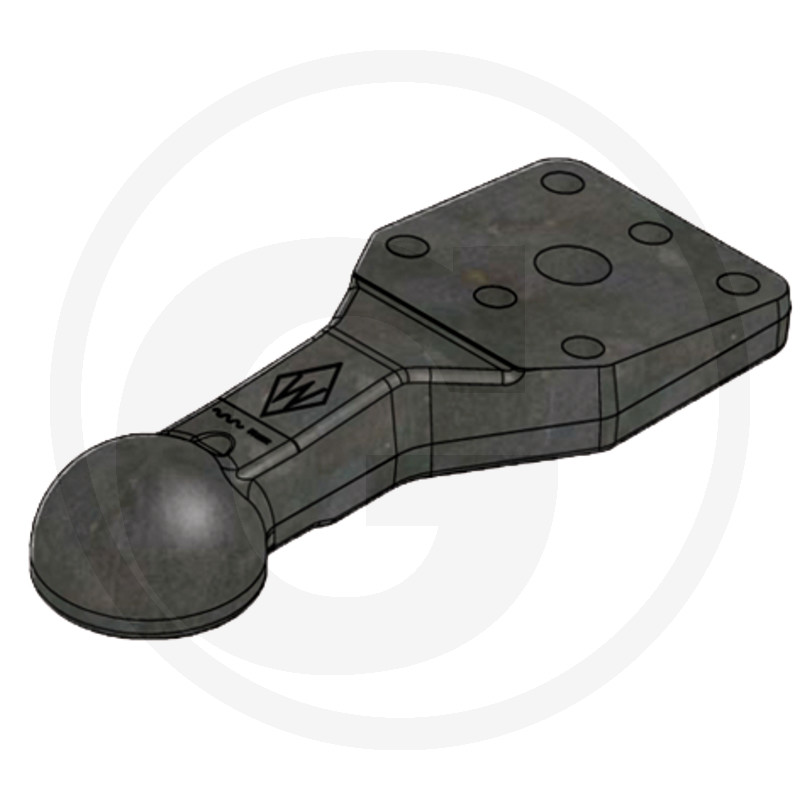

Walterscheid Drawbar eye
Part no.: 770ZKK80-115S
Further information
- D-value (kN):
- 102,4
- Flange:
- 7 holes
- Load capacity (kg):
- 4000
- Hole pattern (mm):
- 115 x 130
- Hole (mm):
- 6 x M22; 1 x M40
- No. of holes:
- 7
- Colour:
- Black
- Lock:
- ball 80
- Thickness (mm):
- 35,2
- Description:
- This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers.
Product advantages:
forged
designed for the highest loads
optimum clearance for angular movement of up to 36°
grooves on the inside ensure optimum distribution of lubricating grease - Length of overhang (mm):
- 314,5
- Assembly notes:
- Spherical cap according to ISO 24347, angled to be screwed underneath
- Weight:
- 20,99 kg
- Catalogue:
- Trailer hitches (p. 37)
- To be found in category:
- Trailer hitchesBall hitchesWalterscheid ball hitches
