Walterscheid Drawbar eye
Part no.: 770ZKK80-115BP
Further information
- D-value (kN):
- 84,2
- Hole pattern (mm):
- 145 x 180
- Colour:
- Bare metal
- Lock:
- ball 80
- Thickness (mm):
- 62
- Description:

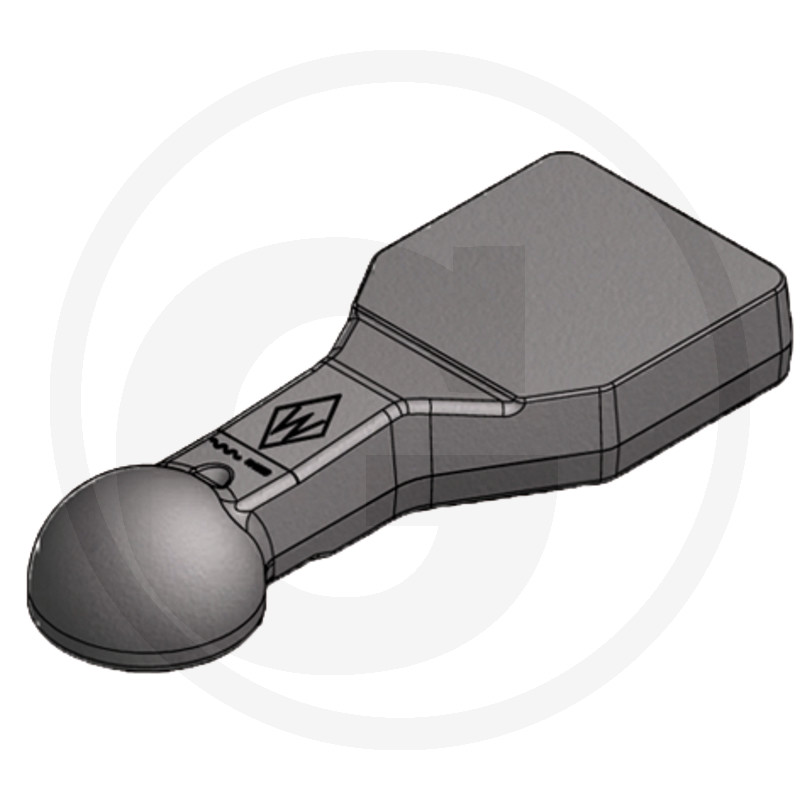

- This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers.
Product advantages:
forged
designed for the highest loads
optimum clearance for angular movement of up to 36°
grooves on the inside ensure optimum distribution of lubricating grease - Assembly notes:
- Spherical cap according to ISO 24347, for bottom mounting, for new design, straight
- Weight:
- 24,00 kg
- Catalogue:
- Trailer hitches (p. 37)
- To be found in category:
- Trailer hitchesBall hitchesWalterscheid ball hitches
