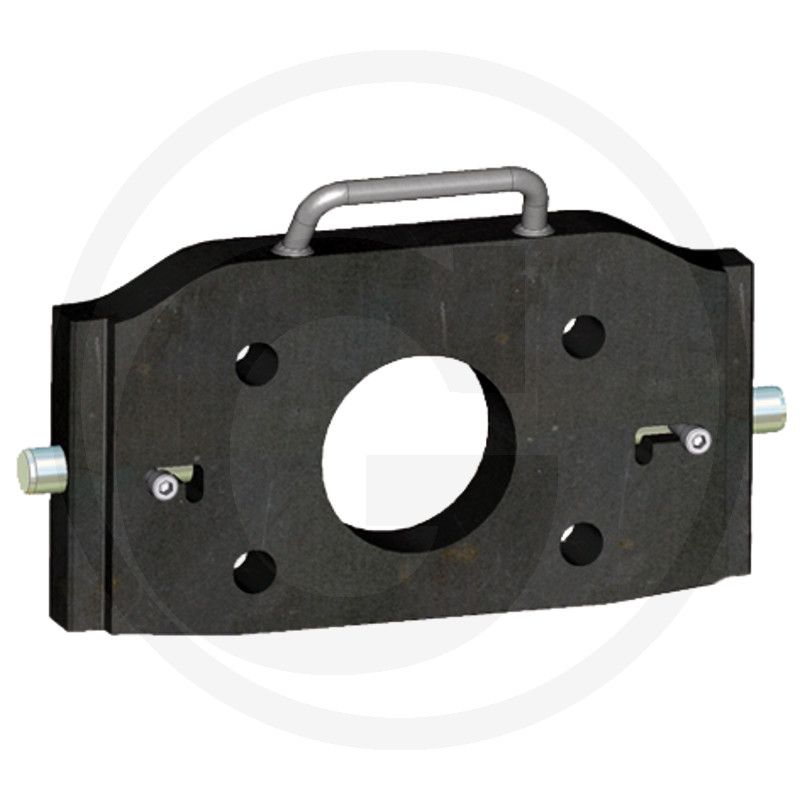

Walterscheid Adapter plate
Part no.: 770KUP389-5
Further information
- Rail width (mm):
- 390
- Guide width (mm):
- 32
- Detent pin Ø (mm):
- 25
- Load capacity (kg):
- 2800
- D-value (kN):
- 89,3
- Central hole (mm):
- 95
- Hole pattern (mm):
- 160 x 100
- Hole (mm):
- M21
- Colour:
- Black
- Description:
- The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
- Assembly notes:
- The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
- Weight:
- 20,20 kg
- Catalogue:
- Trailer hitches (p. 13)
