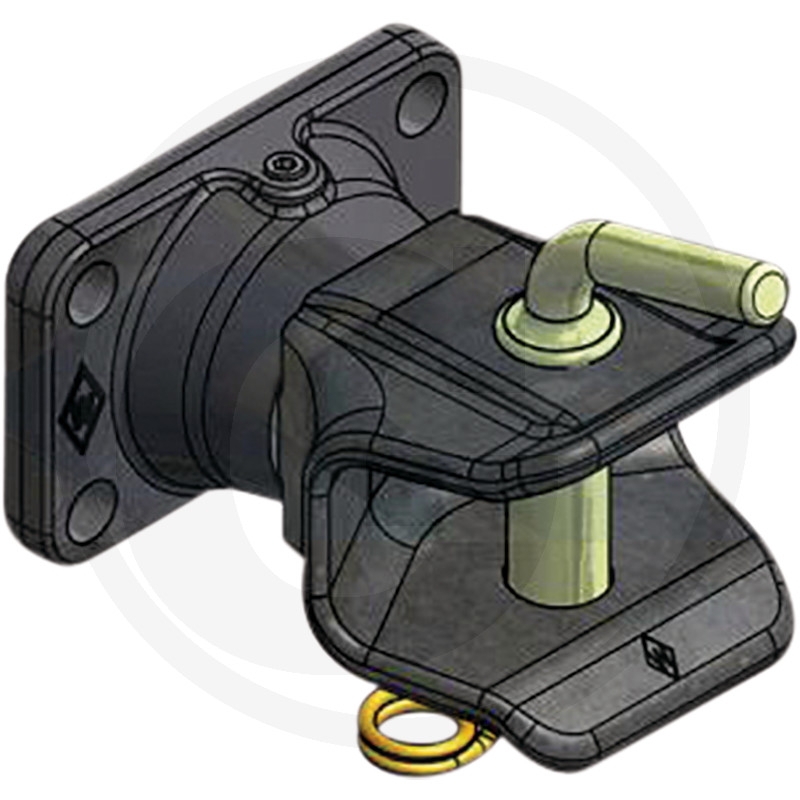

Walterscheid Flange hitch
Part no.: 770KU540-45STB
Further information
- Lock:
- Manual pin
- Hole pattern (mm):
- 140 x 80
- Load capacity (kg):
- 2000
- D-value (kN):
- 82,4
- Hole (mm):
- M21
- No. of holes:
- 4
- Colour:
- Black
- Description:
- This product is a non-automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. This version has a cylindrical hitch bolt (D: 31 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: forged connecting flange
- Included in delivery:
- Includes 1x flange hitch 770KU540-45STB and 1x socket pin 770STB514.
- Connecting pin (mm):
- 31
- Assembly notes:
- Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 74053 (ISO 1102)/DIN 9678 (ISO 5692-1) and ‘Swiss drawbar eye’.
- Weight:
- 13,12 kg
