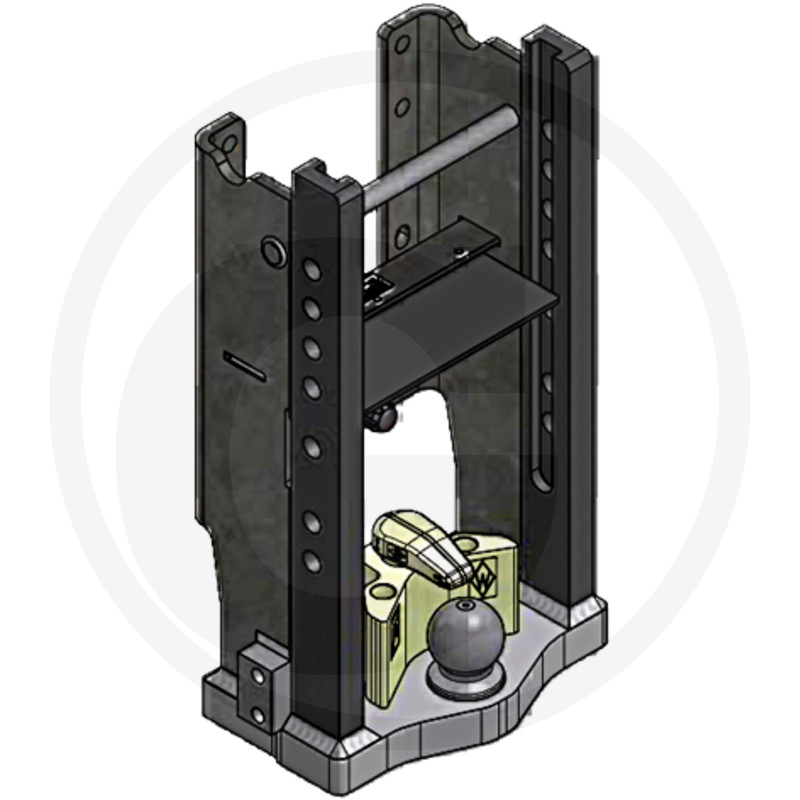

Walterscheid Hitch support
System 80
Part no.: 770KU397KK
Further information
- D-value (kN):
- 94,1
- Detent pin Ø (mm):
- 25
- Guide width (mm):
- 32
- Rail width (mm):
- 330
- Load capacity (kg):
- 3000
- Detent:
- 7
- Colour:
- Black
- Included in delivery:
- Includes 1x hitch support 770KU397KK with individual approval. If required, an adapter 770AD397 must be ordered at the same time.
- Lock:
- ball 80
- Assembly notes:
- Suitable for connection to ball hitches 80 according to ISO 24347. The 80 mm diameter ball can be replaced (by authorised workshops) up to 2 times. Cross member Q64 reinforced without Q19 or Q33 or Q34 may be required. Spherical caps 770ZKK50-30X2 on trailers with forced steering and a steering force of up to 20 kN per hitch support can also be coupled with the hitch support using forced steering devices type 770ZWL50KUN-W15 or type 770ZWL50KUN, or with type 770ZWL30W15KU-AS and 770ZWL30KU-AS joint eyes with a steering rod force of up to 20 kN per hitch support.
- Weight:
- 94,50 kg
- To be found in category:
- Trailer hitchesBearing supportsWalterscheid system
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
This item will only be shipped by forwarding agent.
