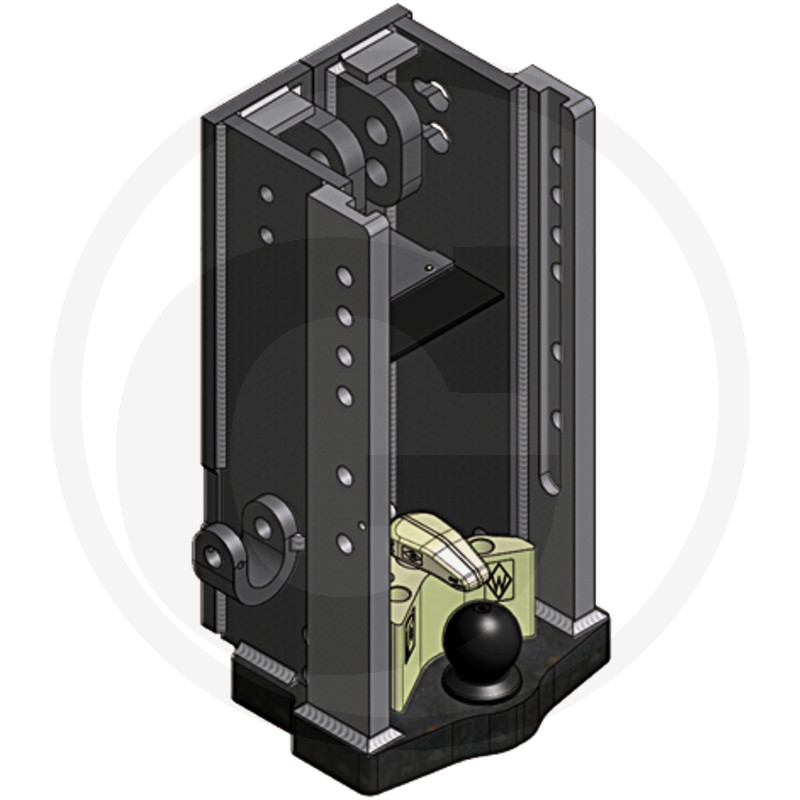

Walterscheid Hitch support
Part no.: 770KU386KK
Further information
- D-value (kN):
- 65,7
- Detent pin Ø (mm):
- 22
- Guide width (mm):
- 30
- Rail width (mm):
- 293
- Load capacity (kg):
- 3000
- Detent:
- 6
- Colour:
- Black
- Description:
- The hitch support is suitable for holding height-adjustable hitches in a variety of locking positions. It also has highly wear-resistant guide rails. The PTO shaft guard meets the latest safety requirements. Advantages: Ball80 can be replaced up to two times in the event of wear, arrester and adjustable hold-down device made of forged materials, hold-down device can be adjusted without tools, suitable for forced steering with Easy Fit Steering System
- Lock:
- ball 80
- Assembly notes:
- Suitable for connection to ball hitches 80 according to ISO 24347. The 80 mm diameter ball can be replaced (by authorised workshops) up to 2 times. The hitch support is not suitable for retrofitting forced steering components.
- Weight:
- 136,00 kg
- To be found in category:
- Trailer hitchesBearing supportsWalterscheid system
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
This item will only be shipped by forwarding agent.
