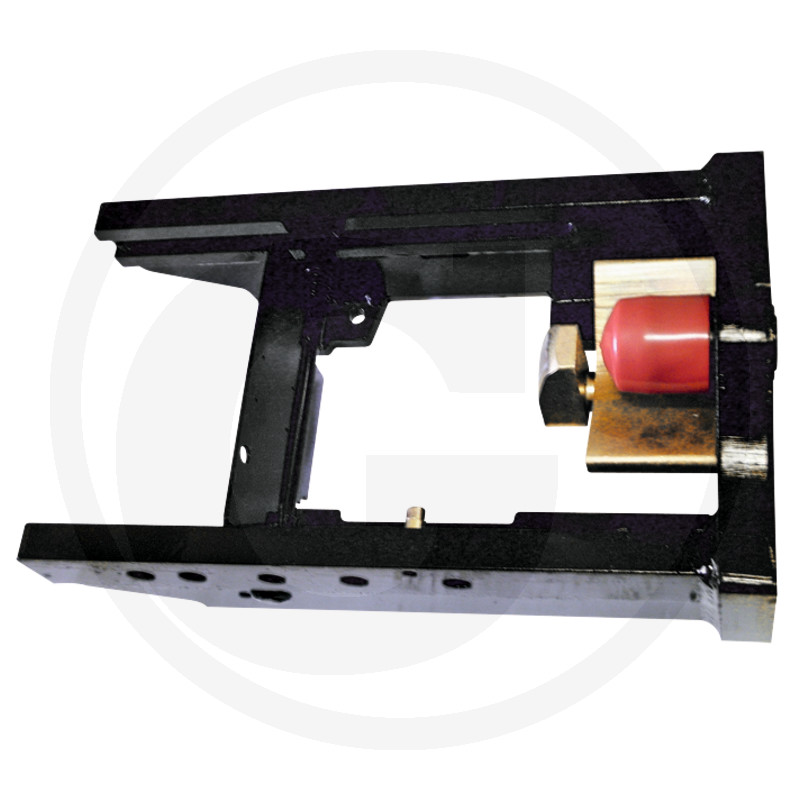

Walterscheid Hitch support
System 80
Part no.: 770KU367NKK
Further information
- D-value (kN):
- 84,2
- Detent pin Ø (mm):
- 22
- Guide width (mm):
- 30
- Rail width (mm):
- 335
- Load capacity (kg):
- 4000
- Detent:
- 5
- Colour:
- Black
- Lock:
- ball 80
- Assembly notes:
- Suitable for connection to ball hitches 80 according to ISO 24347. The 80 mm diameter ball can be replaced (by authorised workshops) up to 2 times. Spherical caps 770ZKK50-30X2 on trailers with forced steering and a steering force of up to 20 kN per hitch support can also be coupled with the hitch support using forced steering devices type 770ZWL50KUN-W15 or type 770ZWL50KUN, or with type 770ZWL30W15KU-AS and 770ZWL30KU-AS joint eyes with a steering rod force of up to 20 kN per hitch support.
- Weight:
- 37,26 kg
- To be found in category:
- Trailer hitchesBearing supportsWalterscheid system
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
This item will only be shipped by forwarding agent.
