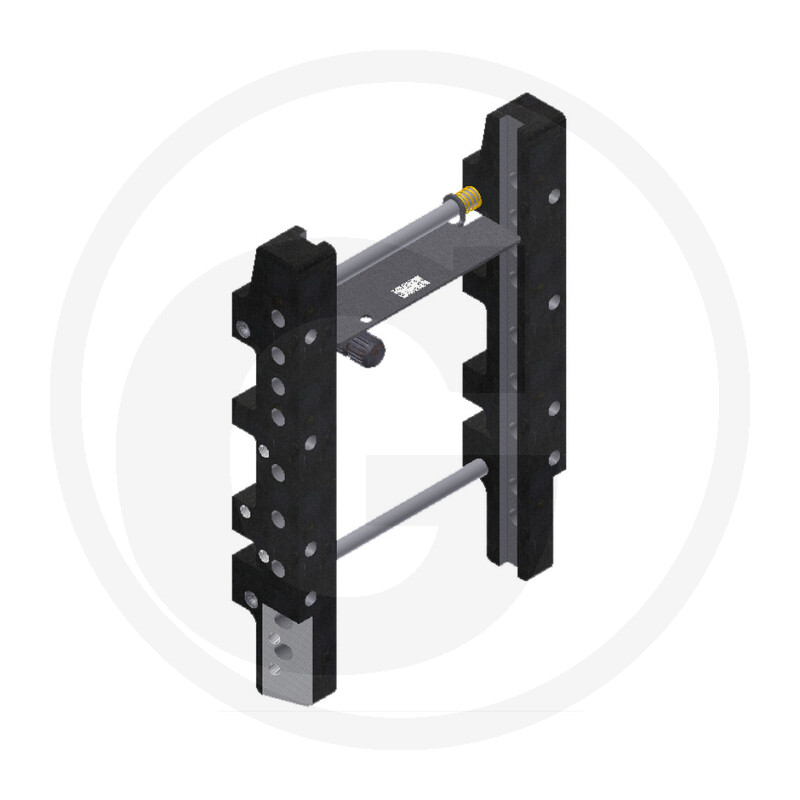

Walterscheid Hitch support
Part no.: 770KU346L
Further information
- D-value (kN):
- 102,4
- Detent pin Ø (mm):
- 25
- Guide width (mm):
- 32
- Rail width (mm):
- 389
- Load capacity (kg):
- 2000 | 3000
- Detent:
- 9
- EC certification mark:
- e1 0540
- Colour:
- JD green
- Description:
- The hitch support is suitable for holding height-adjustable hitches in a variety of locking positions. It also has highly wear-resistant guide rails. Advantages: the Walterscheid diamond has been synonymous with quality and safety for decades. You can rely on the Walterscheid reputation. They will always meet your requirements.
- Included in delivery:
- Includes 1x hitch support 770KU346L. The intermediate plate 770346-180-1 for attaching the forced steering components is not included and must be ordered at the same time if required. Furthermore, 8 fixing bolts 8005354 or a pair of adapters 770DL346 must be ordered at the same time if required.
- Weight:
- 52,00 kg
- To be found in category:
- Trailer hitchesBearing supportsWalterscheid system
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
