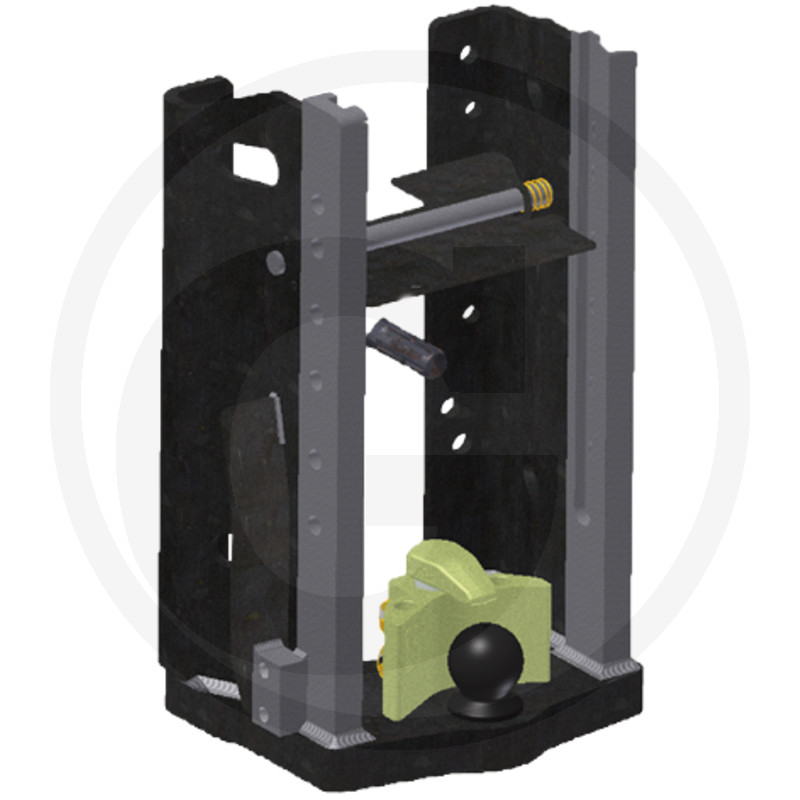

Walterscheid Hitch support

Further information

D-value (kN):

91,6 ; 95,8

Detent pin Ø (mm):

22

Guide width (mm):

30

Rail width (mm):

335

Load capacity (kg):

2000 / 3700

Detent:

6

EC certification mark:

e1 0286

Colour:

JD green

Description:

The hitch support is suitable for holding height-adjustable hitches in a variety of locking positions. It also has highly wear-resistant guide rails. The PTO shaft guard meets the latest safety requirements. Advantages: Ball80 can be replaced up to two times in the event of wear, arrester and adjustable hold-down device made of forged materials, hold-down device can be adjusted without tools, suitable for forced steering with Easy Fit Steering System

Included in delivery:

Includes 1x hitch support 770KU304KKL. An adjustment kit 770ABS304 must also be ordered for gearboxes with M16 fixing bolts.

Lock:

ball 80

Assembly notes:

Suitable for connection to ball hitches 80 according to ISO 24347. The 80 mm diameter ball can be replaced (by authorised workshops) up to 2 times. Forced steering components: spherical caps 770ZKK50-30X2 on trailers with forced steering and a steering force of up to 20 kN per hitch support can also be coupled with the hitch support using forced steering devices type 770ZWL50KUN-W15 or type 770ZWL50KUN, or with type 770ZWL30W15KU-AS and 770ZWL30KU-AS joint eyes with a steering rod force of up to 20 kN per hitch support.

Weight:

127,50 kg
