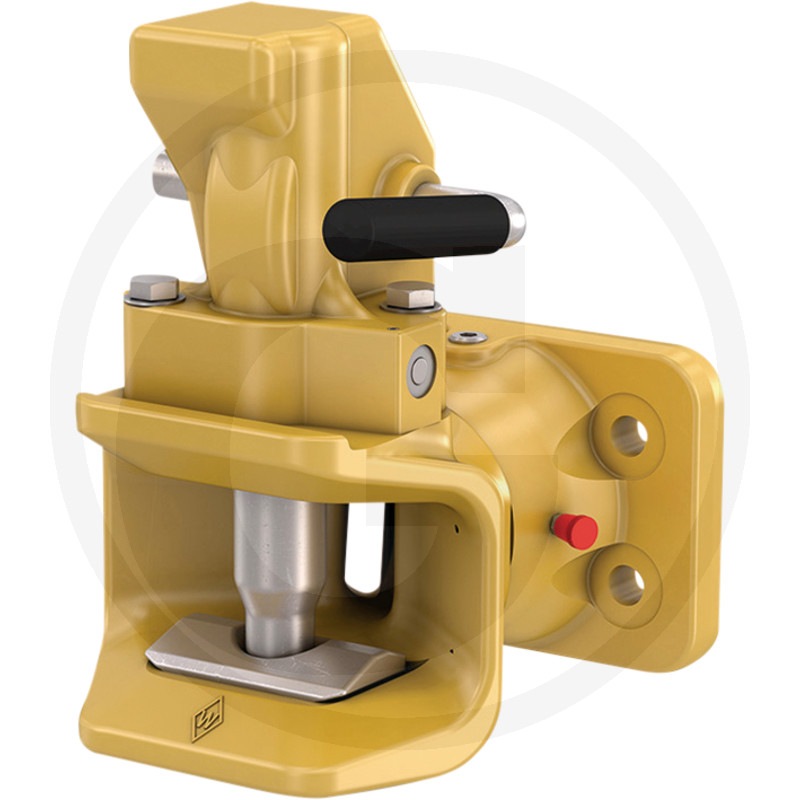

Walterscheid Flange hitch

Further information

Lock:

Automatic bolt

Hole pattern (mm):

140 x 80

Load capacity (kg):

2700

D-value (kN):

82,4

Hole (mm):

M17

No. of holes:

4

Colour:

Black

Description:

This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. It is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a cylindrical hitch bolt (D: 32 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: forged connecting flange, hitch bolt can be freely rotated 360 degrees

Connecting pin (mm):

32

Assembly notes:

Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 74053 (ISO 1102)/DIN 9678 (ISO 5692-1) and ‘Swiss drawbar eye’.

Weight:

19,00 kg
